ElectraFlow®

ESD Ionizers, ESD Ionization



Rocket Science? Hardly. "Modern" Ionizers were invented in the 40's. Negative ion ionizers were in use by the 50's (mostly for health) and balanced ion generators became popular with the already maturing ESD market (mostly Military munitions applications) in the early 60'S. Now? ESD Ionizers are used in many high tech manufacturing programs to control ESD (Electro Static Discharge) in the work environment. Do they Still work the same? Pretty much! ESD ionizers neutralize a static charge via balancing the ions between the molecules in the gasses of the surrounding air. ESD Ionizers are typically used to control static on isolated conductors that can’t be grounded and insulative objects (like standard plastics). ESD Ionizers are perfect for removing contaminant attraction caused by static as well as neutralizing static charges from wide, focused or hard to reach areas.

The Benefits of ESD Ionization? Increased yields, cleaners assemblies, a reduction in latent ESD damaged sensitive electronic components and increased production in all environments where static is an issue.

What Makes it an ElectraFlow? We start with the real (not the knock off) German Dr. Schneider series ionizers. We retrofit them with the addition of a much larger Heavy Duty power supply and replace the factory emitter points with pins made of a Tungsten Alloy (typical lifespan 10 to 15 years). We top this off with the addition of a heavier duty fan assembly and test and certify the machines right here in the U.S.A. allowing us to provide:

  • 3 Year Written Warranty

  • 3 Year Free Compliance Verification with recalibration certificate

  • 3 Year Guarantee of Compliance to ANSI ESD S20.20

Unlike dainty high maintenance ionizers, our selections are the industrial workhorses of ionization. They require VERY low maintenance and provide extraordinarily consistent self balancing attributes that are steady, stable and reliable.



Our Most Popular ESD Ionizers for Static Control



ESD Benchtop Ionizer small

Benchtop ESD Ionizer IconElectraFlow HD-303 HEAVY DUTY ESD Bench Top Ionizer with Air Intake Pre-filter (also works great for mounting under shelves or for overhead use) Air Filtration! Patented circular arrangement of 12 balanced tungsten emitters for ultimate ionic output and longevity! Anti-static powder coated aluminum alloy housing. Full Size and High Output!



Heavy Duty power supply twice as large as similar units and a full THREE YEAR Warranty! More POWERFUL than the similar yet PRICIER ionizer built by our competition. This product comes complete with full Certification to THE latest ANSI ESD S20.20-2014 Standards



SPECIAL of The Month! Save over $100.00 Each!

Now Only $399.99 each and FREE SHIPPING!*

Click to Buy Online*

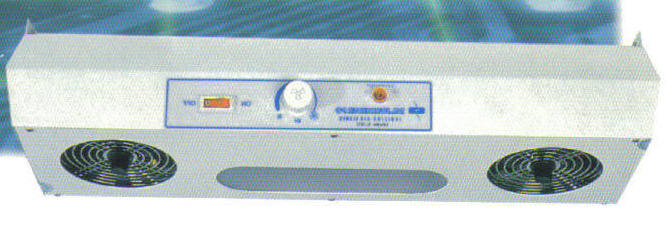

dual fan ionizer for ESD control

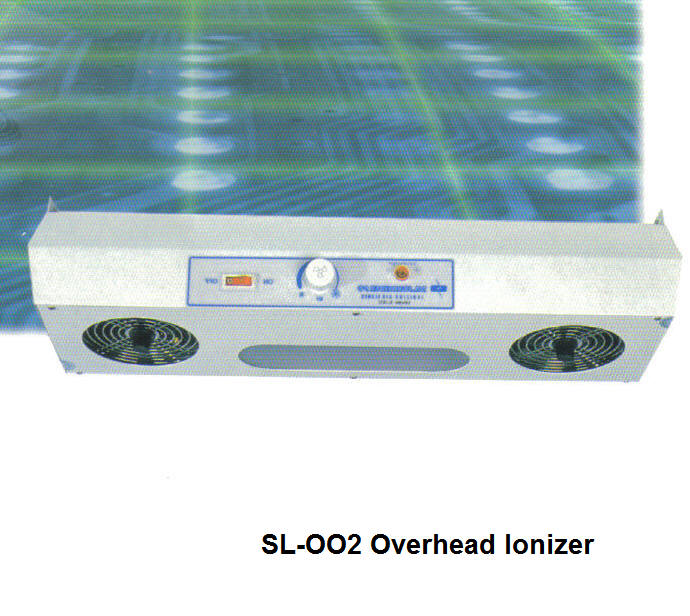

2 fan overhead ionizer for ESD control arrowElectraFlow HDSL-002 Overhead dual fan ESD ionizer with on demand workbench lighting, Heavy Duty power supply, tungsten alloy emitters, 3 year warranty, built in emitter point cleaners, dual variable speed fans with an adjustable output of 80 to 220 CFM. Powerful performance, an industry standard at a great price. .This product comes complete with full Certification to THE latest ANSI ESD S20.20-2014 Standards!


Now Only $633.99 each and FREE SHIPPING!*

 Click to Buy Online







3 fan overhead static control ionizer eliminates ESD

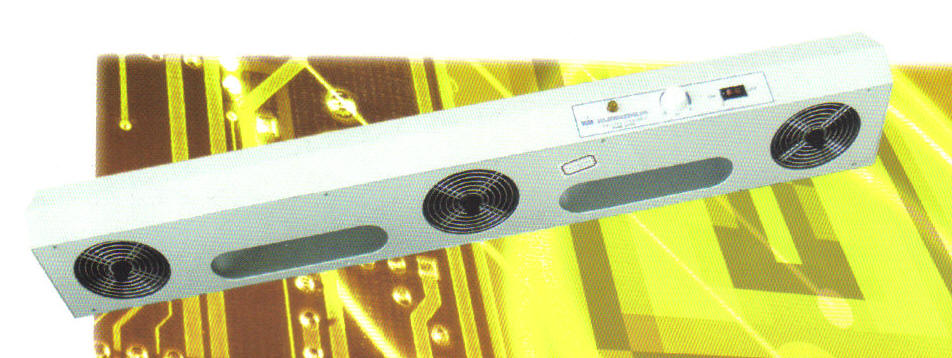

3 fan overhead ionizer for ESD control arrowElectraFlow HDO-205 Fully adjustable Triple Fan overhead ESD ionizer with on demand workbench lights, built in emitter cleaners and self balancing output from 120 to 330 CFM. Very robust and reliable. Long life, low low maintenance. Perfect for medium to large ESD workstations. Popular for eliminating static charges from a variety of industrial applications including paper processing, precision assembly and more.



Now Only $736.14 each and FREE SHIPPING!*

Click to Buy Online







4 fan ionizer for static control

440 CFM Overhead ESD Ionizer iconElectraFlow HDSL-1104 Overhead FOUR Fan, high output (up to 440 CFM) ESD Ionizer quickly and completely removes static. The 1104 is self balancing, quiet, contains built in emitter cleaners and comes complete with factory calibration. THE most balanced ions for your money! Very robust, outstanding reliability. Perfect for large ESD work stations as well as packaging areas and more.



Now Only $767.58 each and FREE SHIPPING!*

Click to Buy Online

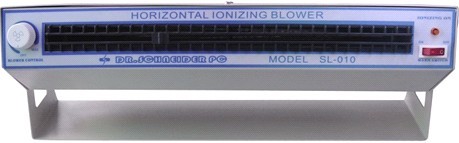

This horizontal ESD ionizer is perfect for bench top esd ionization for static control photo4 fan overhead ionizer for ESD control arrowElectraFlow HDSL-010 The ElectraFlow HDSL-010 esd ionizer provides a wide, narrowly focused plane of ionized air to control static across a sizable area of an esd work surface. This powerful yet easily controllable ionized air stream is PERFECT for electronic assembly and removing the final traces of static from insulative objects and sub assemblies.



Now Only $808.00 each and FREE SHIPPING!*

Click to Buy Online

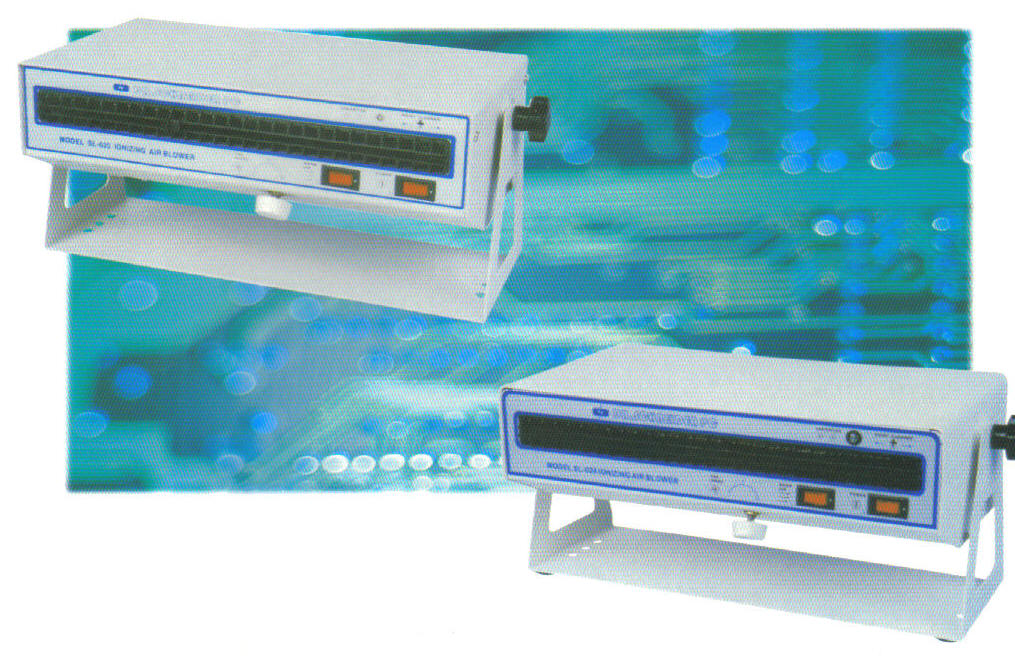

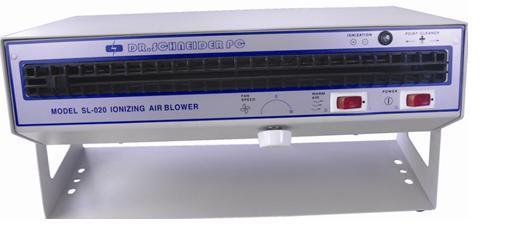

Heated ESD Ionizer for Static Controlheated esd ionizerElectraFlow HDSL-028 HEATED esd bench top ionizer is a versatile unit that provides a wide plane of ionized air to control static electricity. This powerful yet easily controllable ionized air stream is PERFECT for electronic assembly and removing the final traces of static from insulative objects and sub assemblies. Excellent for other uses in manufacturing environments such as plastic sheet and vacuum forming operations. One of the most versatile ionizers in the industry! 3D air flow!

Now Only $691.99 each and FREE SHIPPING!*

Click to Buy Online

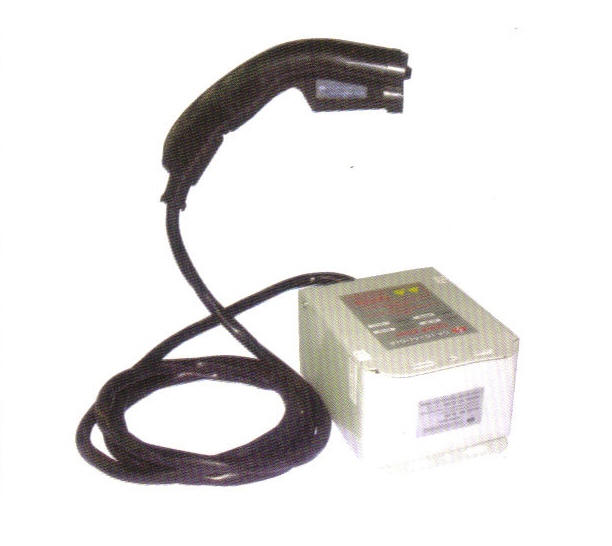

Static Eliminating Air GunHand Held Static Eliminating Air BlowerElectraFlow HDG-600 Hand Held ESD Ionizing Air Gun: HEAVY DUTY power supply and generous 6 foot airline / power supply cable. Light weight, powerful and robust. Industrial strength, easy to control, easy to maintain, hand held, works with clean compressed air.



The ElectraFlow HDG-600 is perfect for eliminating dust AND static from sensitive parts yet powerful enough for larger assemblies, packaging, automotive paint and body work, assembly line operations and more. This unit includes a super heavy duty power supply and has a successful track record of over 10 years!



Now Only $558.58 ea and FREE SHIPPING!*

Click to Buy Online

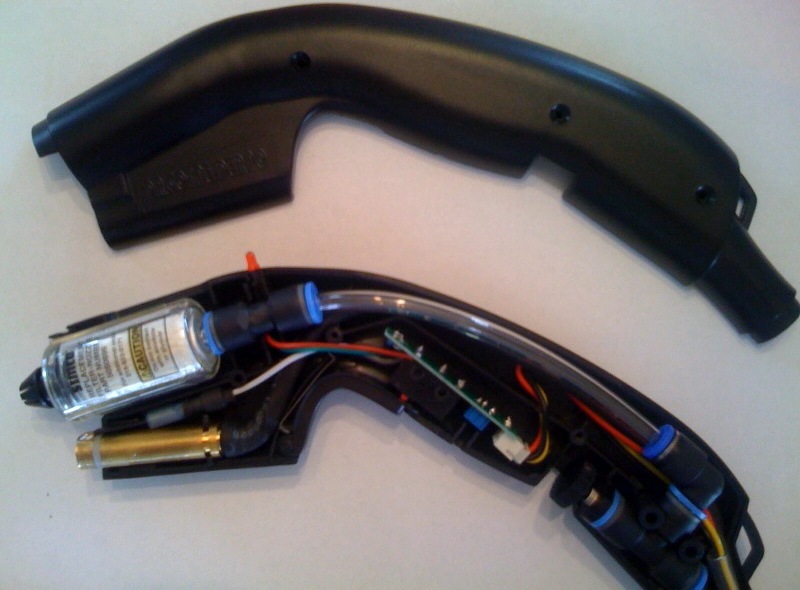

Compare to the Simco® 4006992 Top Gun™ Ionizing air Gun* This product is not manufactured nor distributed by Simco Industrial Static Control Inc an Illinois Tool Works Company.Top Gun Static Elimination GunThe NEW HDSL-280 ElectraHawk hand held ionizer with power supply and foot pedal: The HDSL-280 delivers a highly refined static eliminating air stream with powerful blow off capabilities! Eliminates static laden dust and particulate! Outstanding controllability balance and mobility! From delicate components to hearty assemblies the ElectraHawk sl-280 has the looks, feel, and performance of a finely crafted tool designed to last a lifetime! Suitable for class 100 Clean Rooms, light weight, durable, meets stringent class 100 clean room standards. INCLUDES foot operated power switch at NO additional Charge! Includes certificate of compliance, unparalleled  blow off capabilities and replaceable 1 micron final air filter (normal life expectancy of filter 2 years).

 Compare our HDSL-280 to the Simco® Top Gun™ Ionizing Air Gun (an Illinois Tool Works Company). The HDSL-280 is neither manufactured,  distributed nor associated with said Companies. The HDSL-280 and the Simco Top Gun are some of the most popular hand held ionizing air blowers in the World!



NOW ONLY $753.29 Each and FREE SHIPPING!*

Click to Buy Online

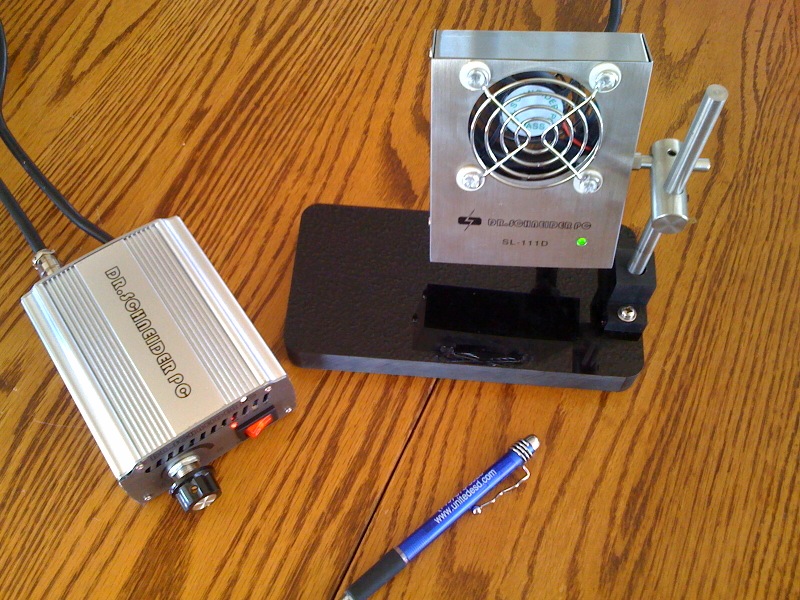

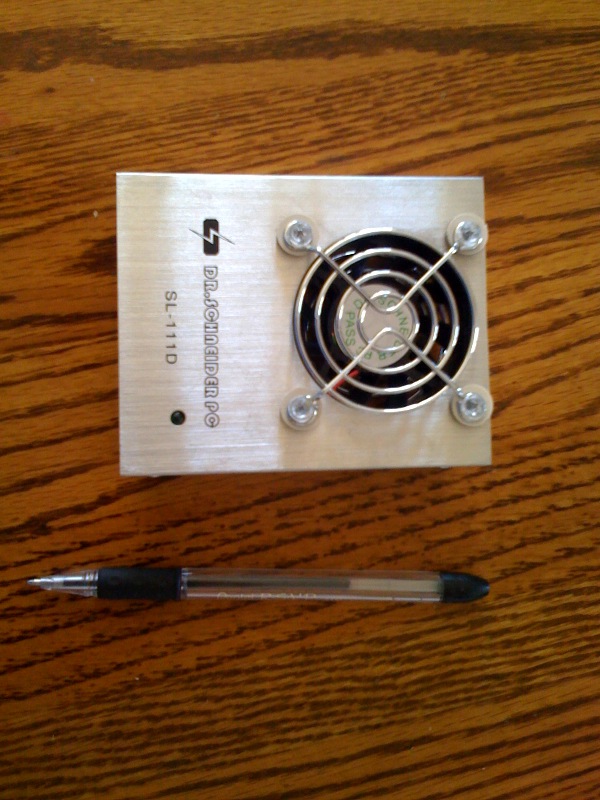

precision esdl ionizermini DC ionizer for delicate partsElectraFlow DCSL-111D Precision clean room compliant stainless steel DC mini ionizer. The unit consist of a stainless steel DC miniature high output - high efficiency ionizer that mounts on a heavy duty stainless and composite stand. The angle and height of the ionizer is fully adjustable using a small Allen wrench. The unit comes complete with a heavy duty 3 foot long cable that attaches the ionizer to the stainless steel power supply unit. The power supply unit contains a variable speed function and on off switch for the 2 inch fan located in the ionizer. Manufactured in a class 1000 clean room. 4 tungsten emitters, adjustable airflow output, +/- ionizer balance set screw mounted conveniently on the front of the transformer.

CFM: 3 to 15

Max sound output: 30dB

Coverage Range: 4" to 6" ideal (up to 12" max)
Typical Decay time: 4" .07s, 6" 1.2s, 12" 2.4 s (1,000 to <100V)

Weight: Power supply / controller 0.75 kg
Weight: Ionizer: 0.28 kg.
Weight: Stand: 1.2 kg

Ion balance: =/- 5 volts

Ionizer Size: 4.25" tall, 1" deep, 3.5" wide

Ozone generation: 0.03 x 10 -6

Alternate Photo





Click Here for our Ionizing ESD Air Curtains
