Why Heat Weld ESD Tiles

 Seam Free ESD Flooring for Ultimate Cleanliness and Easy Maintenance

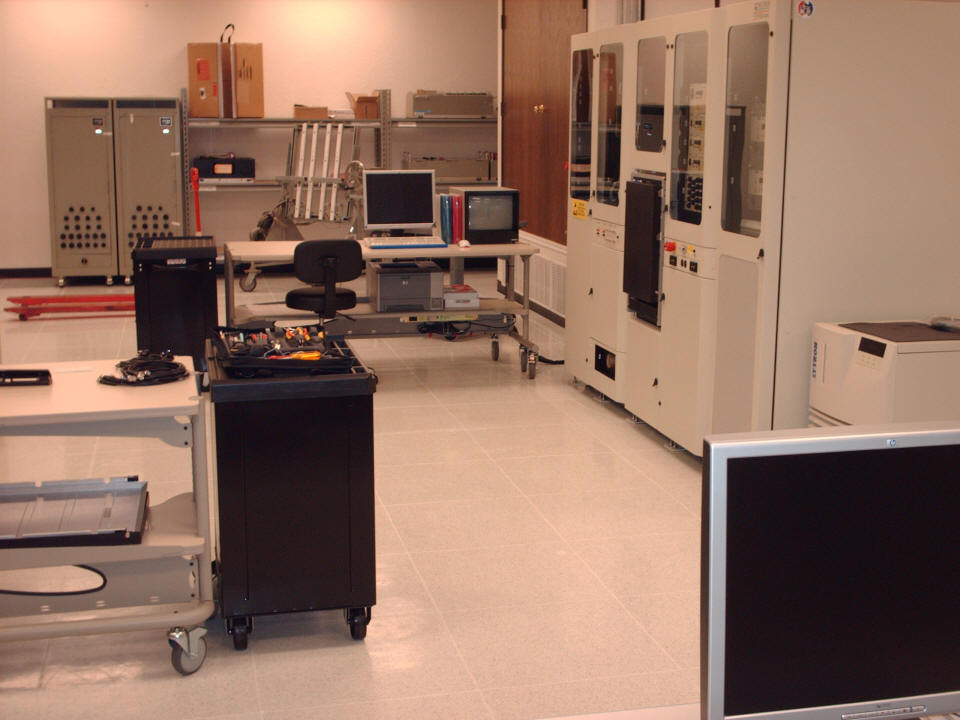

Image of Heat Welded ESD Floor

Heat Welded 2' x 2' ESD Tiles

Click for Large Photo


Heat welded ESD floors are impervious to water and chemicals and are highly recommended for cleanliness in all classes of clean room operations and hospital operating theaters.


In addition heat welded seams provide advanced dimensional stability, perfect with heavy rolling loads and for use with air jacks. Color selection can be close to the color of the esd flooring tiles or sheet goods or selected in an off color (blue rod on white ESD tiles for example) providing a high tech grid work that looks OUTSTANDING

Heat welding ESD tiles and sheet vinyl eliminates dirt and dust that easily collects in seams. With no place to hide, dirt and dust are easy to remove. A heat welded esd tile floor that is merely swept looks like a non heat welded floor that has recently been damp mopped!

Process Overview: To heat weld Titanium or one of our other esd tile selections a groove is cut where the seams meet. A specialty hot air gun and nozzle are used to heat the welding rod and flooring. The heat weld technician slowly draws the heat weld equipment down the length of the groove filling it with a bead of molten vinyl while melting the adjacent groove that has been placed in the flooring. The bead is allowed to cool (for about 15 minutes). A specialty knife or vinyl planer is used to rough cut the top of the bead cutting it down to about .010 from the top surface of the flooring. A second finish cut is completed (normally next day) allowing the bead to be cut to the same height as the flooring.

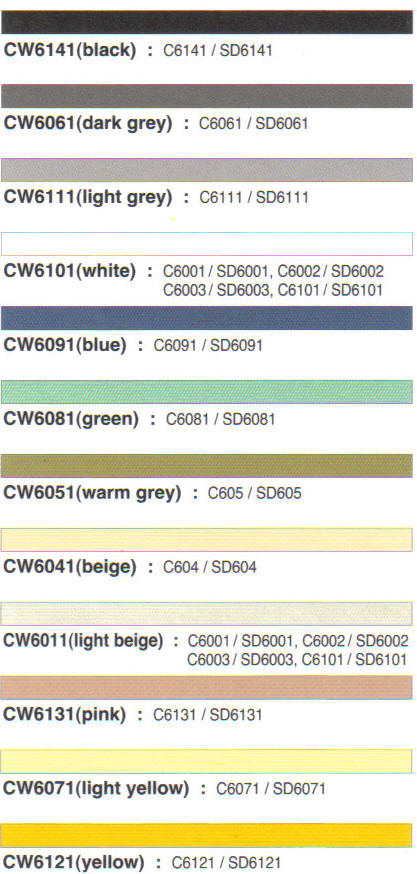

Availability: Titanium heat weld rod is available in spools and in colors designed to compliment the color of the Titanium Flooring. Titanium heat weld rod is a solid color (it doesn't contain the mottling texture or colors of the flooring).

Container Size: Spools, .167 (4.2 mm) thick X 328 Linear Feet in Length.


Click HERE to Buy Titanium Heat Welding Rod Online
