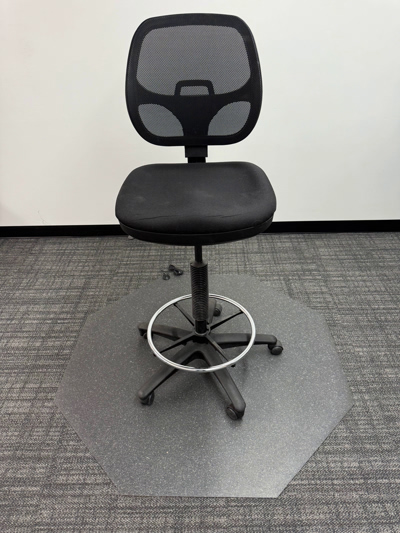

OctoStat® Mission-Critical ESD Protection Work Station Floor Mats
| |||||||||||||||||||||||||||||||||||||||
|
|
|
|
OctoStat Static Control WorkStation Mats NOW Available in THREE Designer Colors |
|
OctoStat static control work station floor mats are a perfect size for sophisticated offices AND advanced ESD Sensitive manufacturing cells.
They are thin (for reduced tripping hazards) yet so durable they are warranted with a 20 year warranty on wear* and a lifetime warranty on their static control properties.
Powerful, REAL Static Control Protection that fits a workstation PERFECTLY
Manufactured in Colorado using our Titanium Series ESD Vinyl, OctoStat conductive chair mats reduce static (even with standard shoes and chair casters) and ELIMINATES static when used with ESD Chairs and Footwear.
Tested to ANSI ESD S20.20 and TR-53 prior to leaving our facility!
Octostat mats meet or exceed the static control requirements of ANSI ESD S20.20. They provide flawless combination resistance values that never EVER fail an ESD Audit. Two Layer! The material consist of a wear resistant top layer that is incredibly hard and permanently fused to a FULL SURFACE electrically conductive backing. This is the key to providing unmatched static control performance.
ONLY from United Static Control Products
OctoStat
mats are supplied as a kit with an easy attached
floor mat ground cord kit. A corner is pre punched
for your convenience making the attachment easy,
convenient and secure. All it takes is a small screw
driver and 5 minutes! The mats are shipped rolled
and lay flat after a period of about 24 hours. To
expedite this process place them in a warm sunny
location prior to installation. Each kit is tested
at our factory using NIST grade in compliance test
instruments prior to shipping to your location.
COLORS
|
Pale Gray PN: Ti481 |
Dark Gray PN: Ti482 |
Electronic Blue PN: Ti483 |
Charcoal Black PN: Ti404 |
Note: blue and dark gray are special order, currently stocked in Charcoal Black and Pale Gray
Dimensions:
48" as shown, 2 millimeters thick
ADVANCED SPECIFICATIONS
|
Surface Resistivity Point to Point per ESD S 7.1 |
<1.0E06 |
|
Electrical Resistance to Ground per ESD S 7.1 |
<1.0E06, (NOTE: Ground cord contains a 1 meg resistor taking the KIT up to about 2.3E06 |
|
Electrical Resistance per ANSI/ESD S20.20-2021, 97.1 |
<3.5E07 |
|
Tribo Charging Characteristics per ESD 97.2 |
< 10 Volts (<100 volts is passing) |
|
Flooring Radiant Panel: NFPA 253: Critical Radiant Flux |
0.73 W/cm2, Class 1 |
|
Flooring Radiant Panel: NBSIR 75-950: Critical Radiant Flux |
Pass, Class 1 |
|
Flooring Radiant Panel: ASTM-648: Critical Radiant Flux |
0.73 W/cm2, Class 1 |
|
Smoke Density, ASTM E-662; NFPA 258; Average optical density in burning / smoldering mode |
<450 |
|
Residual Indentation LF-475A |
0.002 average |
|
Abrasive Wear, Tabor H-18 wheel, 5,000 cycles, 1,000 gm weight |
1.1% loss of weight |
|
Abrasive Wear, Tabor H-18 wheel, 1,000 gm weight to wear layer penetration (end point) |
>20,000 cycles, <2.0% loss of weight |
|
Static coefficient of friction, ASTM D-2047-03, James Test average wet, dry leather |
.60 approx. |
|
Static load limit DIN 16961.2 |
>1,000 PSI |
|
Charge decay time per FTMS 4046-101c |
< .17 seconds |
|
OctoStat Series ESD Floor Mats meets or exceeds the requirements of Federal Specifications LF-475a and SST-312b for flexibility, dimensional stability, resistance to reagents and residual indentation.
OctoStat ESD Floor mats meets ANSI ESD S20.20-2021 Product Qualification and Compliance Verification
|
|
PRICING:
$238.62 each plus shipping to your location
Hard Copy Certification add $35.00
Please call to place your order.
Contact United Static Control Products!
Tame the Static Beast Before it Takes another Byte!
