Mid Length, ESD Compliant, V Neck Smock, use with or without ground cord, available in multiple colors.

Large Photo

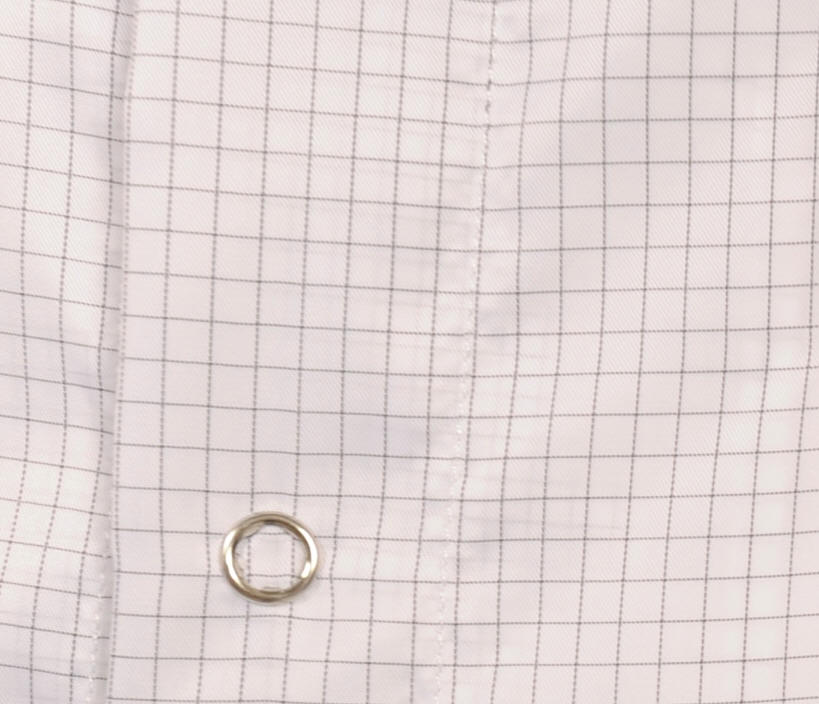

ElectraWear Advanced: Static Control ESD Smocks provide outstanding shielding from user induced static charges. They feature excellent conductivity via a low tribocharging polyester containing a minimum of 4% carbon suffused nylon. The precision alignment of sleeves and side panels provides excellent sleeve to sleeve and panel to panel throughput of static charges to ground. Each garment is provided with 4 mm side mount ground snaps. These smocks may be used with or without the optional smock ground cord (dependent on your esd program requirements).



OUTSTANDING Color Selection!

Click here to view available colors.



Extremely light in weight but made from INDESTRUCTIBLE tight knit polyester with triple stitched seams. Stain resistant. Class 1,000 and above clean room compliant fabric is standard but this smock is also available in a CLASS 100 Clean Room Fabric! An excellent choice for use in any environment.

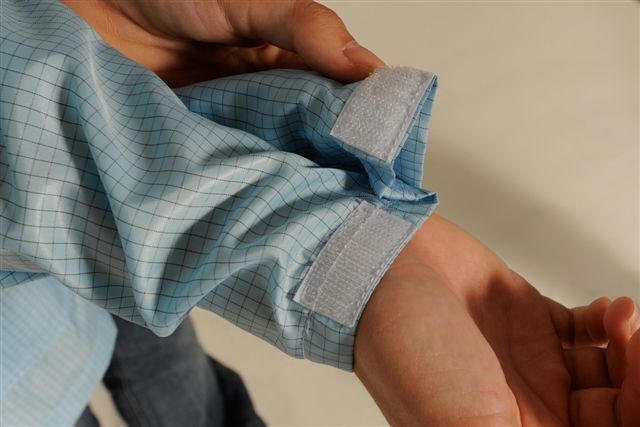

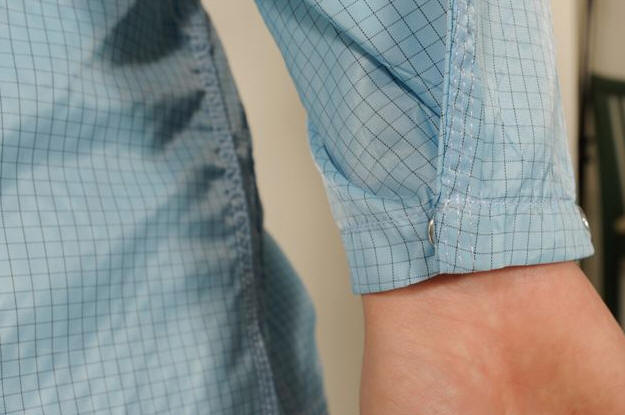

 Velcro Style cuffs standard, snap cuffs optional. Both configurations maintain excellent skin to smock contact for ultimate charge decay. Tightly woven 96% Polyester with 4% advanced carbon cross hatch fiber. Popular and professional! Mid length with side pockets.



CONDUCTIVITY:  ElectraWear Static Control Smocks are designed for fast, thorough and complete shielding of user induced static charges. The garments are ANSI/ESD S20.20-2021 TR-53 test friendly. When used without the optional ground cord these garments are compliant to ANSI/ESD S20.20-2021 STM2.1, "static control garment". When grounded using the optional smock ground cord they are compliant to ANSI/ESD STM2.1, "groundable static control garment."

Typical electrical resistance of this garment, human body and standard smock ground cord: 2.42E06 @ 29.3rH and 70 degrees F. Typical panel to panel and sleeve to sleeve resistance: <1.0E07 @ 29.3%rH and 70 degrees F.

AVAILABILITY: 8 week lead time, 30 piece minimum

PRICING: $24.13 to 2XL. Only $3.00 more for sizes 3X to 6X.

These smocks require a 30 piece minimum for the standard material and a 60 piece minimum for the clean room fabric (single color but all sizes combined). They require an 12 to 20 week lead time.  Please DO NOT place your order on the cart for smaller amounts or if you require them faster. The cart will accept smaller quantities but WE CAN NOT ACCEPT YOUR ORDER and the refund will tie up your funds due to processing times. If you agree with these terms please proceed to the shopping cart to make your purchase.



PART NUMBER: EWA followed by size and color

Click here for Distribution Cut Sheet

Download Specifications.

Click Here for Fiber Specifications, Warranty, Available Colors, Options in Clean Room Fabrics

Cleaning Instructions and Sizes Chart
