Specifications, Colors, Care & Warranty

Static Conductive Cross Hatch Fabric

96% Polyester 4% carbon nylon.

Samples of the following fabrics: $6.00 and free shipping, Buy Online.



Expanded photo's are slightly magnified for your convenience.

Actual conductive pattern .180 x .180 thousandths of an inch.



* No Minimums if in stock. 30 piece minimum if not in stock (any sizes combined).

** 30 piece minimum order (any sizes combined).

*** (crc) = Class 100 Clean Room Compliant, 60 pc minimum order (any sizes combined).

NOTE: JC (crc) style fabric adds an additional $5.50 to the cost of each esd garment.

Click icons to expand photo.

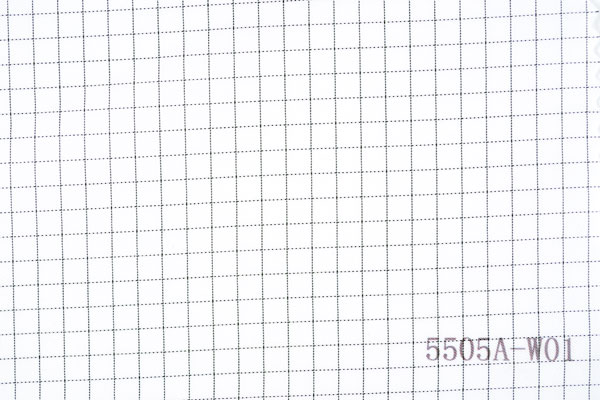

5505A-WO1*

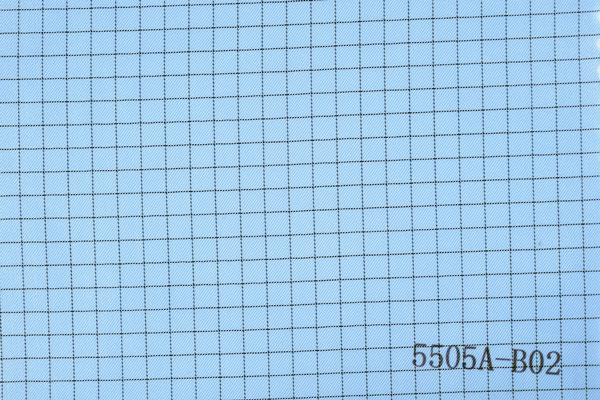

5505A-BO2*

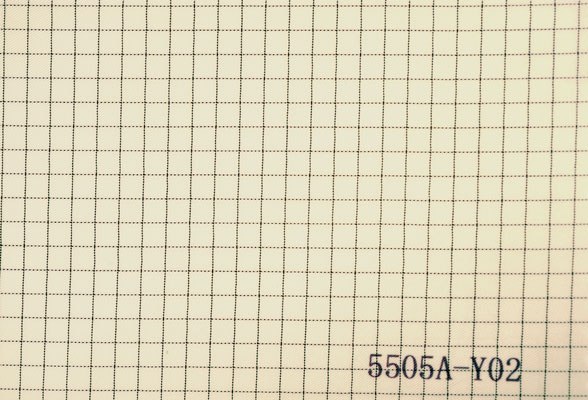

5505A-Y02**

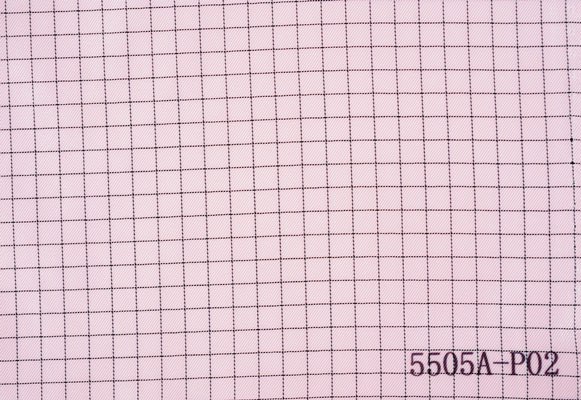

5505A-P02**

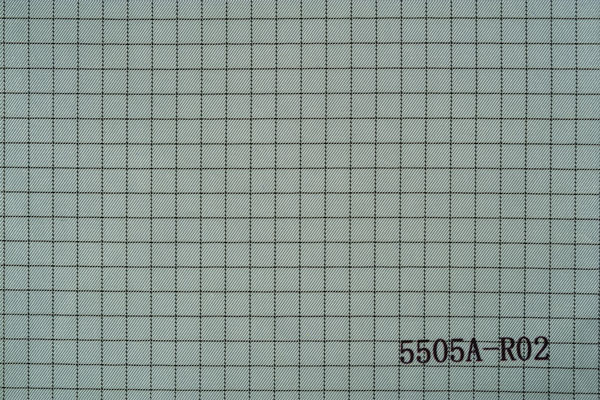

5505A-R02**

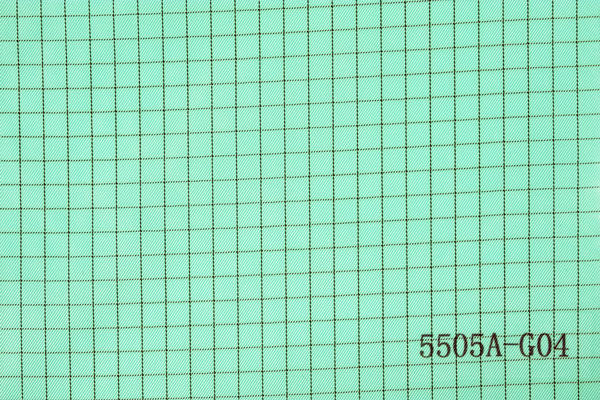

5505A-G04**

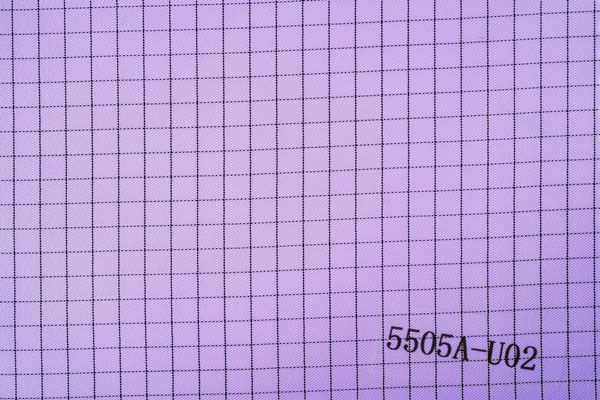

5505A-U02**

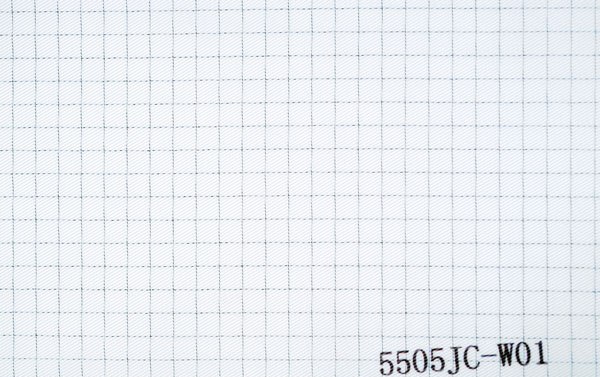

5505JC-WO1*** (crc)

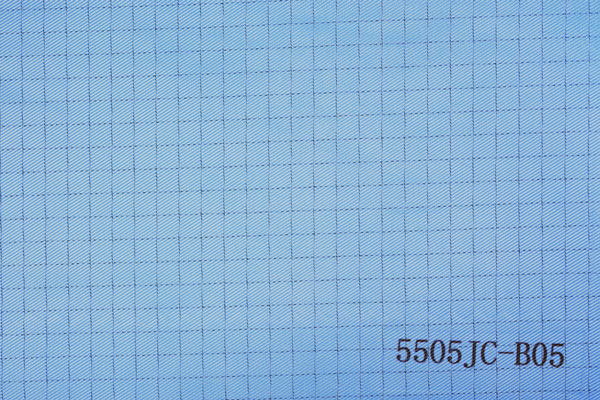

5505JC-BO5*** (crc)

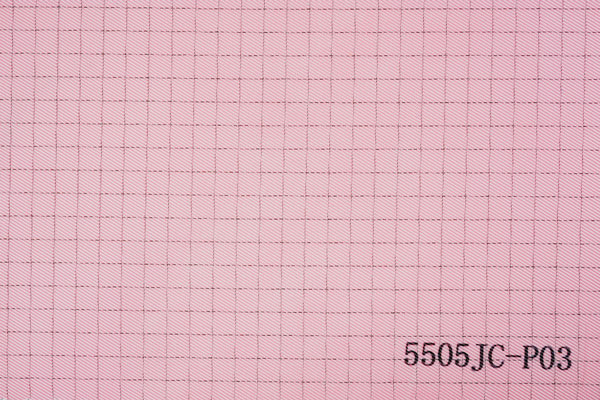

5505JC-PO3*** (crc)

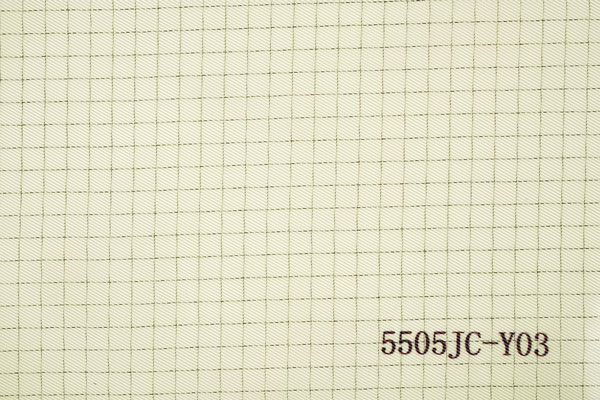

5505JC-YO3*** (crc)

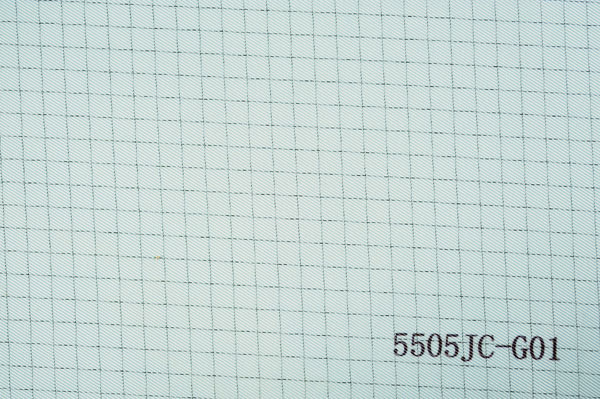

5505JC-GO1*** (crc)

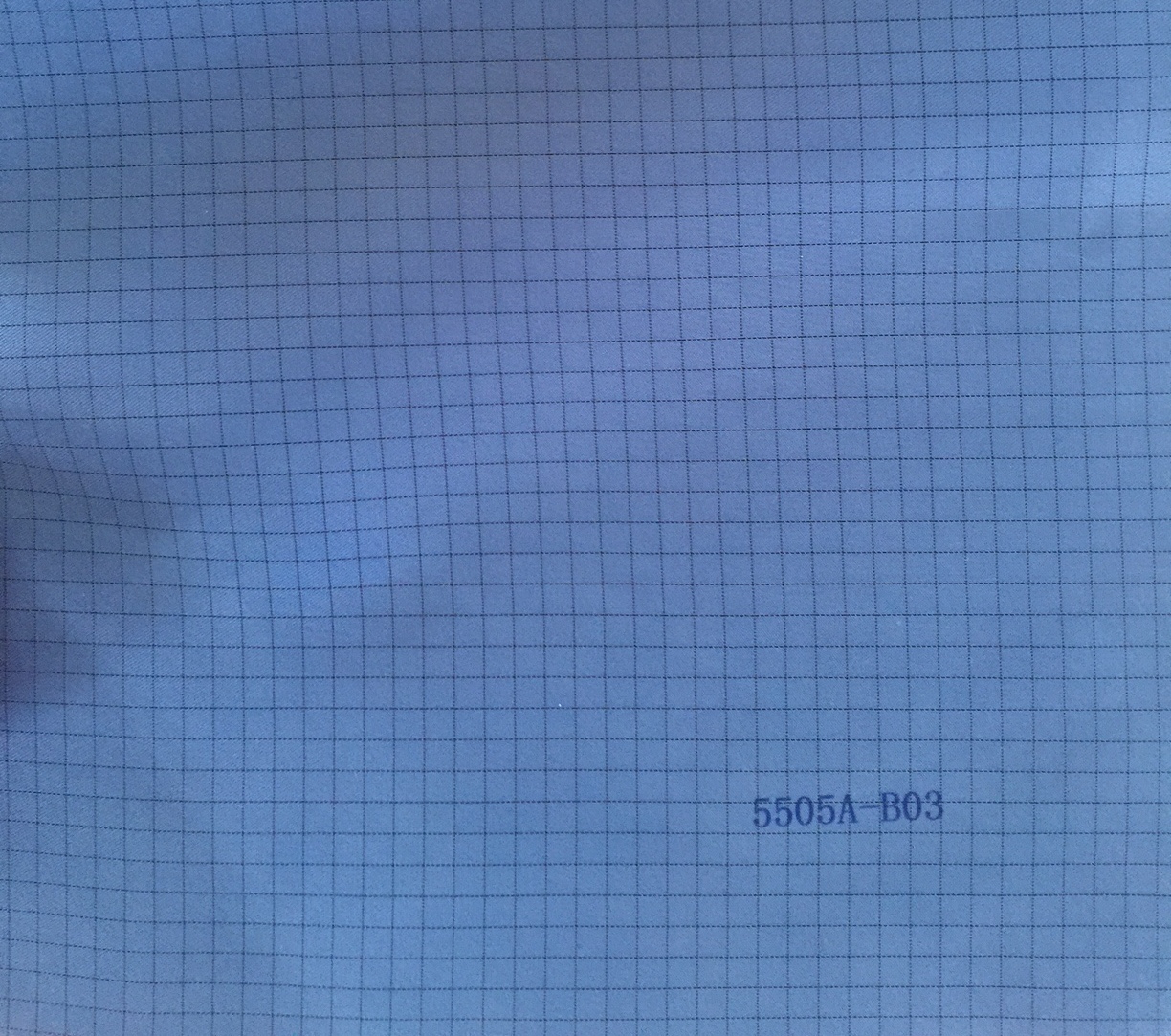

New: 5505A-BO3**



Specifications:

Composition : 96% Polyester with a 4% Nylon carbon filament yarn.

Weave: 2/1 twill , 5 mm grid,

Weight: 95 g /m2 (±5%)

Warp: 150 ends / inch

Weft: 109 ends/inch

Width: 60 inches (152 cm)

Yarn Type

Warp: Polyester 75D/36F; Conductive 70D/25F polyamide base

Weft : Polyester 75D/72F; Conductive 70D/25F polyamide base

Tensile Strength:

Warp: 150 ends / inch

Weft: 109 ends / inch

Air Permeability : 6.0 CC/CM2/Sec (JIS-L1096-A)

Friction Charges: 35 V. (JIS L1094-B)

Half-Life: 4 sec (JIS L1094-A)

Tear Strength: warp: 3.0 kg / weft: 1.9 kg (JIS L1096-6.15.5-D)

Decay Time: ±0.01 sec

Glass Transition Temperature: 250 Degrees F.

Flash Point: 1040 Degrees F.



Cleaning instructions

Machine Wash smocks on gentle cycle in cool to warm water (at temps of under 100 deg. F). Use proper amount of a liquid mild non-ionic/anionic detergent (like Tide 2x or similar) that contains no fabric softeners. Do not bleach.  If the smock has a zipper closure system ZIP before washing. Wash smocks separately, do not mix with other industrial laundry.  For best results hang dry (they dry very quickly). Machine dry on the lowest setting possible (do not dry at temperatures over 110 deg F), do not tunnel dry.  These smocks will dry very quickly, do not over dry.  Hand washing: These smocks may be hand washed with the same basic instructions as above.



Conductivity

This material meets or exceeds ANSI/ESD S 20.20-2014 standard ANSI/ESD STM2.1 "static control garment AND groundable static control garment."  This material is TR53 (compliance verification) test friendly. Typical resistance of material, containing no seams, when tested point to point, per TR-53 is 4.3E05 @ 29.35rH and 70 degrees F.



Warranty

United SCP expressly warrants the conductivity of this material and the garments manufactured from it will maintain the stated conductivity for a period of 100 washings or 1 year (whichever comes first) when tested to ANSI/ESD S20.20-2014 TR-53.  Said garments are further warranted to meet all specifications as posted above for a similar period of time.



Warranty Specifics

Within the Warranty Period and at the discretion of United SCP, defective garments will either (1) be repaired at no charge or (2) United SCP will exchange the product with a similar garment or (3) refund the original purchase price of the product on a 12 month prorated basis. Defective items must be shipped prepaid to United SCP’s testing facility and must include an RMA number plus invoice copy, packing slip or other proof of purchase from United SCP, Incorporated.  The RMA number must be obtained by calling United’s customer care department at (USA) 719 676 3928.



Warranty Exclusions and Limitations

United SCP shall have no liability to the customer for and including but not limited to lost profits or any special, consequential, exemplary or incidental damages of any kind whether arising in contract, tort, product liability or otherwise, even if advised of the possibility of such lost profits or damage. Customer also agrees to indemnify and hold harmless United SCP for and including but not limited to damages, injuries or deaths of any kind and / or for any reason from the use or misuse of this product as purchased, supplied, manufactured or brokered through and / or by United Static Control Products Incorporated. This warranty does not apply to damage caused by not following our posted cleaning instructions, abuse, neglect, stains, burns, rips, tears, misuse or lack of preventative routine maintenance.



Size Chart for ElectraWear Advanced

SIZE

S

M

L

XL

XXL

XXXL

XXXXL

XXXXXL

Length

34.5

39.5

40

40.5

41.5

42

42.5

43.5

Chest

44.8

48.8

51.1

53.5

57

60

62

66.5

Sleeve

29.7

30.5

31.5

32.2

33.4

34.6

35.4

36.2

All sizes in inches. Tolerance : + / - 3%
