FM-1126 Electrostatic Field Meter

ESD Field Meter Test Static Polarity, Voltage and Ion Balance. Perfect for use in achieving the new ANSI/ESD S20.20-2021 Standard. See this Static Field Meter in action and learn how an ESD smock shields  sensitive electronics in this 2 minute video!



ESD Field Meter Test Static Voltages, Polarity, Ion Balance

FM-1126 ESD Field Meter

Special of the Month! Now just $554.68

Add to our shopping cart



The NEW Static Solutions Ohm-Stat ESD Field Meter is a palm sized electrostatic measuring device ideal for testing static voltages, polarities and even the ion balance of ESD ionizers! The FM-1126 is robust, lightweight and compact making it ideal for the periodic verification of the static control processes used in your facility.

Locate the Static Charge and Neutralize it!

Use this device to isolate the PERFECT placement of an ESD ionizer on a static laden assembly. Test the accumulated voltage of a conveyer belt and find out where the static starts and where to focus your efforts. Test the accumulated charge on a technician. Now GROUND the person and the charge drops to ZERO.

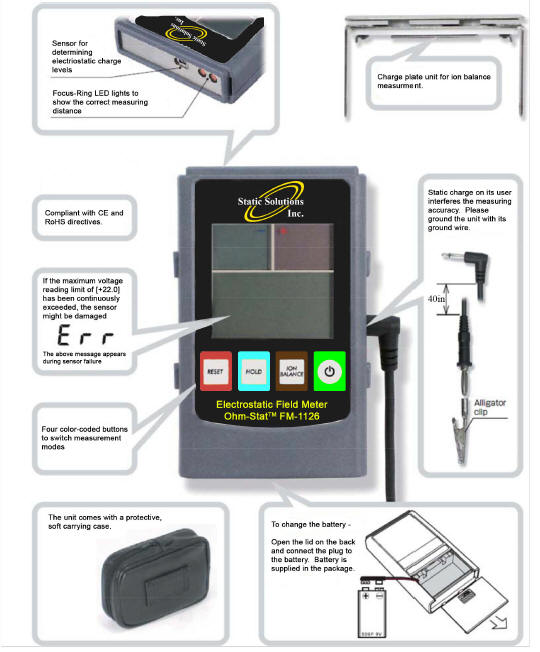

This easy to comprehend tool is invaluable for any esd program. The tool is CE, RoHS and S20.20 Compliant. A Calibration certificate is included with each meter. The multifunctional Ohm-Stat FM-1126 static field meter incorporates a powerful static hardened microprocessor, an ion balance plate, grounding cable and a soft shell case.

measure static voltagesAccurate measurements of static voltages.

measures static polarityAccurate measurements of polarity.

compliant to ANSI ESD S 20.20 standardsCOMPLIANT for use with ANSI/ESD S20.20-2021.

free of conflict materials and leadRoHS compliant and free of conflict materials.

laser focus ring technologyUnique focus ring LED's show proper measuring distance.

Audible overload protectionAudible alarm protection if over range.

NIST compliantNIST Compliant, includes certificate of compliance.

Back Light Technology can be read in the darkBack lit technology, easy to read even in the dark!

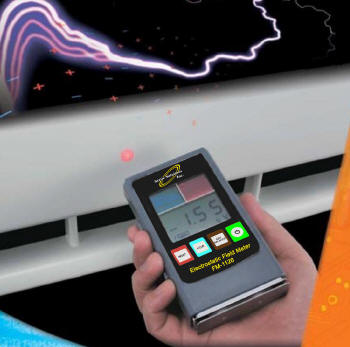

Photo Gallery of ESD Field Meter in use



Measuring Range: Static Voltage

+0~+ 1.49kV (low range).

+1.0~+ 20.0kV (high range).

Measuring Range Ion Balance

0~ + 200 Volts

Measuring Distance (charged item to device)

1" + 0.5

Accuracy

10%

Ambient Limitations

50 degrees F. to 104 degrees F, 68%rH or lower

Power Supply

9V alkaline battery (30 hour approximate)

Display

Large easy to read LCD display (digital and bar graph)

Weight with battery

.30 lbs (w/o ionizer plate) .37 lbs with plate

Accessories

9 volt battery, soft case, ion plate, ground cord, cert

Dimensions of device w/o charge plate

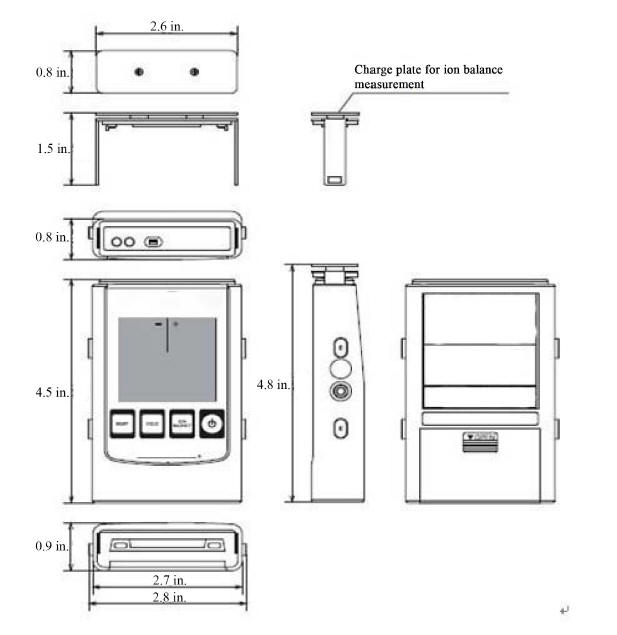

4.5 X 2.7 X .9 Inch Drawing with ion balance plate



For all Quick Reads use the Back Button to return to this page



Quick Read Operational Information

Quick Read: Operational Information

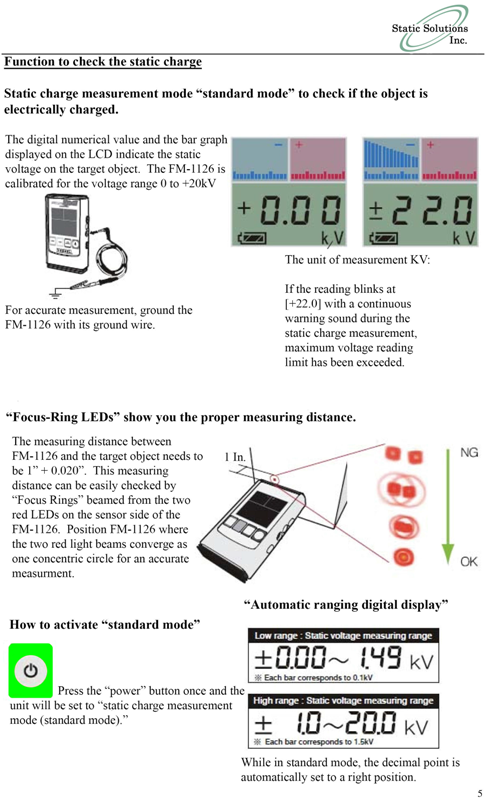

Quick Read: Check static charge, display information

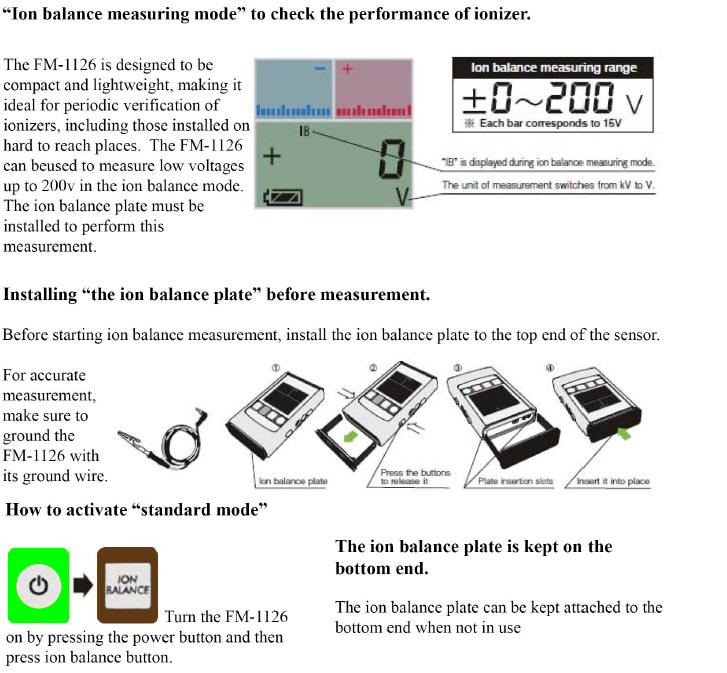

Quick Read: Ionizer Test Function



Download Data Sheet and Specifications (3.3mb)



Lowest Price Guarantee!

If you find it at a lower published price simply let us know!

We'll beat it by 3% and send you a free static control gift for your time!



$554.68 each

Add to our shopping cart
