PolyFlor ESD Flooring

Hardwearing contract sheet vinyl or tiles* ULTIMATE Options in Conductivity! Static Conductive (for use in electronic manufacturing) to Static Dissipative (perfect for pharmaceutical manufacturing, clean rooms and more)!



PolyFlor SD

(Tiles or Sheet Goods, see the bottom of this page for pricing)



Static Dissipative antistatic flooring.

PolyFlor SD



Engineered for use where static control is required but the resistance level doesn't need to be as low as that produced by conductive flooring.

It's prefect for reducing nuisance static but we don' recommend it for use in electronic manufacturing. It is designed to work in conjunction with a relative humidity of 40% or higher.

PolyFlor SD Contains ZERO carbon so it is an extremely clean product to work with. Normal use areas are computer rooms, healthcare facilities and scanner rooms. The material is available in both tiles and sheet good. It is homogenous, 100% recyclable and contains a 25% recycled material content. ElectraFloor SD Plus features an A+ BREA environmental rating in the Green Guide.

Installation     Grounding      Specifications     Options in Conductivity      Specifier Sheet

Golden Sand 5070

Flaxen 5060

Ocean Blue 5050

Steel Gray 5080

Teal 5080

Silver Gray 51010






PolyFlor Finesse SD

(Tiles or Sheet Goods, see the bottom of this page for pricing)



PolyFlor Finesse SD



Engineered for use where static control is required but the electrical resistance level doesn't need to be as low as that produced by conductive flooring.

It's prefect for reducing nuisance static but we don't recommend it for use in electronic manufacturing. It is designed to work in conjunction with a relative humidity of 40% or higher.

ElectraFloor Contains ZERO carbon so it is an extremely clean product to work with. Normal use areas are computer rooms, healthcare facilities and scanner rooms.

The material is available in both tiles and sheet goods. It is homogenous, 100% recyclable and contains a 25% recycled material content. ElectraFloor SD Plus features an A+ BREA environmental rating in the Green Guide.

Installation     Grounding      Specifications     Options in Conductivity      Specifier Sheet

Woodglade 5840

Moonscape 5860

Cascade 5800

Daybreak 5820

Lodestone 5830






PolyFlor OHMega

(Sheet Goods Only, see the bottom of this page for pricing



PolyFlor OHMega Static Conductive



Engineered for use where static control is a necessity and meeting the latest ANSI ESD S20.20-2014 Standards is a must!

It's prefect for use in THE most sensitive of static control environments from electronic manufacturing to ESD sensitive equipment.

OHMega EASILY meets ANSI/ESD S20.20-2014 with a charge generation when tested to 97.2 of well under 100 volts! ElectraFloor Advanced is not dependent on humidity for its conductivity.

PolyFlor OHMega lays flat, features outstanding wear characteristics and provide ULTIMATE Static Control Properties. OHMega is100% recyclable and contains a 25% recycled material content. OHMega features an A+ BREA environmental rating in the Green Guide.

Installation     Grounding      Specifications     Options in Conductivity      Specifier Sheet

OHMega Thunderstorm 6002

OHMega Warm Haze 6003

OHMega Tempest 6005

OHMega Frosty Glen 6005

OHMega Morning Dew 6006

EC Black / Grey 8990

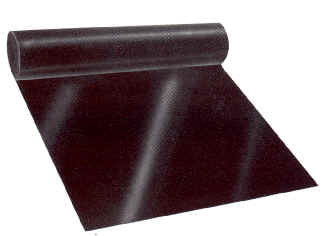

ElectraFloor High Conductivity

(available in full rolls only)



Super High Electrical Conductivity!

PolyFlor 5980



Engineered for munitions, ordinance and manufacturing areas where explosive and flammable agents are stored. It is non sparking and HIGHLY CONDUCTIVE and for use by trained personnel only. It DOES NOT meet the minimum resistance values for compliance to D.O.D. 4145-26M

This material's electrical range falls below the industry accepted recommendations of greater than 2.5E04 hence it may present a significant electrocution hazard to personnel that may come into contact with a high voltage power supply or wiring.

NOTE: This product is NOT recommended for use in electronic manufacturing. Color: Solid Black Only and only available in full rolls. Allow at least 8 weeks for delivery.




PolyFlor Pricing

Contact us for a hard copy quote!

Sheet Vinyl

Approximate Roll Size: 2 x 20 meters (6' 6" x 65 feet)

PolyFlor SD

 $1,587.60

PolyFlor EC

 $2,262.14

PolyFlor Finesse SD

 $2,149.38

OHMega EC

 $3,728.10

Tile

Tile Size: 608 x 608 mm (23.9 x 23.9 inches), 14 tiles to the carton

PolyFlor SD

 $254.39

PolyFlor EC

 $341.78

Finesse SD

 $319.92

Accessories

Weld Rod, 328 Linear feet per roll

 $117.85

Adhesive, V4 ESD Conductive, 1 gallon pail

 Currently unavailable

Adhesive, V4 ESD Conductive, 4 gallon pail

 $276.07

Copper/Brass Ground Strips, 80 LF

 $91.53

Pricing valid as of 11/17/21
