ElectraFlow®

SL-003 Triple Fan Overhead Ionizer

Select another type of ESD ionizer



Our SL-003 static control 3 fan overhead ionizer provides a wide yet powerful output of balanced (+/- 5 volts) ions making it the perfect selection for medium to large static control esd workbenches. Unlike many ionizers that require contaminant free air and continual maintenance, the SL-003's steady-state, self balancing circuitry continuously adjusts to compensate for emitter point wear, line voltage fluctuations, variations in air velocity and air particulates, keeping maintenance to a minimum and performance at a maximum.  Used by major companies world wide, the SL-003 features high output, fully adjustable airflow, on demand overhead lighting, long life tungsten emitters (typical life span three years and easy to replace) and casings manufactured of a light weight aluminum alloy with  a static dissipative powder coating for a meticulous high tech finish. Why pay over $1,000 for the privilege of buying this 3 fan ionizer from the high overhead big boys. Call United SCP, save your esd program a substantial amount of money and get the same high quality and performance you demand from a reliable supplier with a great product and a proven track record.

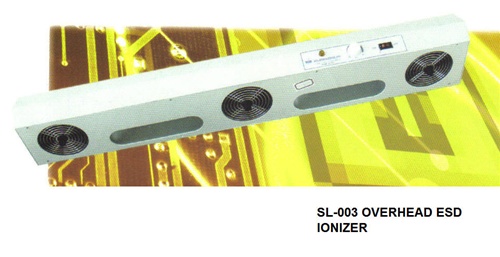

3 fan overhead esd ionizer and work light photo



SL-003 3 Fan Overhead ESD Ionizer with Lighting

Powerful Performance - Outstanding Value!

.

 Static Control ESD Ionizer ArrowOutstanding quality, ISO manufactured to stringent specifications.

 esd ion arrowPowerful, robust performance, highly reliable and very low maintenance.

 Certificate of compliance provided at no charge with each unit.
 Static Control ESD Arrow+/- 5 volt steady state offset voltage balance provides optimum performance.
 Built in emitter cleaning brushes (point cleaner knob), easy to keep clean!
 balanced ion arrowBalanced ion design, factory calibrated, no further calibration required.

 Built in task light, zero to 100% controllable  high output multi speed fans.

 Static Control ESD Ionizer ArrowMounting brackets included at no charge with each ionizer.

 CE Certified, TWO Year Warranty and designed to last a lifetime!
 compliant stm3.1The SL-003 meets or exceeds the recommended technical requirements of ANSI/ESD S 20.20- 2007 tested in accordance with STM3.1.



SL-003 Overhead ESD Ionizer

Price: $590.40 each and FREE SHIPPING!

BUY ONLINE!     REQUEST A QUOTATION!



Specifications:

Line Voltage 110V/60Hz standard, 220V/50Hz optional
Current Draw

Max 1.25 Amp (fan high, light on)

Min  0.62 Amp (fan low, light off)

Operating Temperature 32o F to 122o F,  (0 ~50°c)
Weight 16.98 pounds (7.68kg)
Finish and casing material Powder coated aluminum alloy
Size

46.5" (L) x 6.10" (W) x 4.33" (H) inches

Air volume output

Fan speed: Zero to 330 CFM output

Note: Maximum flow amount equals sum of triple fans at 100%.

Air coverage 24" x 48" (inches)
Recommended distance from work surface 24" to 42" (inches)



Decay Test Results

Testing Condition, decay time in seconds
Operating Voltage: 110V/220V, Testing Voltage: 1kV to 100V, Temperature: 22°c
Distance 300mm 600mm 900mm 1200mm
Left 0.7 2.1 3.2 6.1
Center 0.6 1.9 2.5 5.7
Right 0.7 2.0 2.9 6.0

Note the following are overviews, please see manual (included with product) for full details.

Installation Fast Facts: Install energy efficient fluorescent light bulb into ionizer by removing front cover with a screw driver, unpacking bulb, screwing into place and replacing the front panel.  The SL 003 is an overhead unit designed to provide ideal coverage for control of electrostatics.  Note: Do not insert objects into air intake or outlet grille and do not operate the SL-003 in inflammable or explosive environments. The SL-003 ionizers should be affixed 600 to 900mm (24 to 36 inches) above the work surface with center targeted directly over work area.  Avoid drafty locations such as that caused by air conditioning, heater outlets, etc.



Attachment to overhead supports:  Mounting to ceilings and shelves; S hooks and chains may be used for mounting the ionizer to structurally sound ceilings or wire shelves. Chains and mounting hardware should have a minimum safe working load of at least 30 pounds. When mounting the unit to ceilings it's important to check state and local codes to insure compliance.  The units are typically hung in the same fashion as overhead light fixtures (independently attached to overhead building superstructure). Attaching to suspended ceilings only are typically not compliant with local codes. Mounting to workbench overhead supports; The SL-003 may be mounted to work bench overhead shelves and beams using the adjustable mounting brackets included with your order.



Electrical Requirements: The SL-003 requires 110VAC /60Hz (standard) or 220VAC / 50Hz (optional) power.  These units must be grounded. Each unit is supplied with standard US 3 prong male grounded power plug (standard). Do not modify the plug or use an ungrounded 3 prong receptacle. If an extension cord is required use heavy gauge fully grounded cords only.



Operating Procedure: Activate the SL-003 overhead ionizing blower by turning fan speed knob clockwise.  The ionization indicator will illuminate and indicate the presence of ionized air.  Airflow speed can easily be adjusted from 0% to 100% output utilizing the fan speed knob. Light is provided via a simple on/off switch.  The time required to neutralize electrostatic potential is dependant on distance of ionizer to work surface and speed of fans. When used in electronic assembly the ionized air stream should cover as much of the working area as possible. The constant flow of ionized air prevents items from developing an electrostatic potential and neutralizes electrostatic charges present on objects introduced to the airflow.



Routine Maintenance: Clean emitters as needed (usually bi-weekly in heavy service). To clean ion emitter points press and turn point cleaner knob (located at each air outlet) clockwise approximately one turn and release. Clean air inlet and outlets as needed with a soft brush or vacuum. Periodically test ion output as indicated by your internal esd program or ANSI/ESD S 20.20-2007, TR53, Air Ionizer Compliance Verification (discharge time and offset voltage).  Offset voltages of >+/- 50 volts or decay times that exceed user defined specifications (typically <1.1 sec @ 60%rH and 68 deg F. with ionizer positioned 24" from work surface) may indicate the need for replacement of emitters.  Normal emitter life is 3 years, replacement emitters are easy to install and available from United SCP.
