Tame the
static beast BEFORE it takes another Byte!
ElectraFlow®

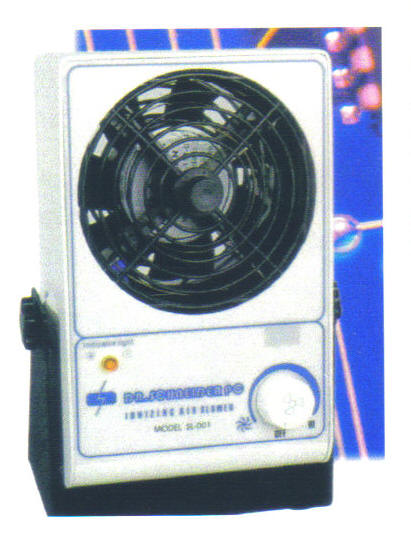

SL-001 Bench top / Workbench / Tabletop ESD Ionizer
The minute you open the box you'll appreciate the attention to detail and quality built into each of our SL-001's. The SL-001's are used by major companies world wide and considered the industrial workhorse of esd bench top ionizers. A horse you can depend on for long term satisfaction, reliability and performance! The SL-001's are perfect for use as a stand alone esd ionizer in tabletop / workbench use but can also be conveniently mounted under esd workstation shelving or used as an overhead ionizer. The SL-001 features a high output air delivery system in concert with a circular arrangement of 12 tungsten emitter points to provide an intense alternating electric field of powerful (yet balanced) ion generation. With a typical emitter point life of 3 years (and easy to change if needed) you may ask yourself why would I pay for a similar ionizer with an emitter change cartridge for $625.00 (nearly twice the cost of our SL-001's). Compare our product to the high overhead big boys. They make a great unit and so do we. Call United ESD, save your esd program a substantial amount of money and get the same high quality and performance you demand from a reliable supplier with a great product and a proven track record.
 |
|
Powerful!
High performance output, an outstanding value!
SL-001 Bench Top ESD Ionizer
Price: $320 ea with FREE SHIPPING* Call for quantity discounts!
Specifications:
| Operating Voltage | 110V/60Hz standard, 220V/50Hz optional |
| Current Consumption |
Max. 0.25 Amp (high fan). Min. 0.12 Amp (low fan). |
| Operating Temperature | 32o F. - 122o F. (0 ~50°c) |
| Air Coverage | 16" x 24" (40cm x 60cm) |
| Air Volume | 45~110CFM |
| Size |
3.54" (L) x 10.24" (H) x 6.69 (W)" (90mm x 260mm x 170mm) |
| Weight | 6.61 Lbs (3kg) |
| Finish and casing material | Antistatic powder coated aluminum alloy |
Decay Test Results
| Testing Condition | ||||
| Operating Voltage: 110V/220V, Testing Voltage: 1kV to 100V, Temperature: 22°c | ||||
| Distance | 300mm | 600mm | 900mm | |
| Decay time | positive | 1.2s | 2.4s | 4.0s |
| negative | 1.2s | 2.5s | 3.9s | |
| Offset voltage | positive | 8v | 5v | 4v |
| negative | 7v | 6v | 3v | |
Note the following are overviews, please see manual (included with product) for full details.
Installation Overview:
The SL-001 features an attached heavy duty adjustable metal stand with a non marring, non slip base. The SL-001 may be simply placed on work bench, bolted to the underside of a work bench shelve or attached to overhead supports as follows. Attachment to overhead supports: Mounting to ceilings and shelves; S hooks and chains may be used for mounting the ionizer to structurally sound ceilings or wire shelves. Chains and mounting hardware should have a minimum safe working load of at least 30 pounds. When mounting the unit to ceilings it's important to check state and local codes to insure compliance. The units are typically hung in the same fashion as overhead light fixtures (independently attached to overhead building superstructure). Attaching to suspended ceilings only are typically not compliant with local codes. Mounting to workbench overhead supports; The SL-001 may be bolted to work bench overhead beams using the adjustable mounting stand included with your order.
Electrical Requirements: The SL-001 requires 110VAC /60Hz (standard) or 220VAC / 50Hz (optional) power. These units must be grounded. Each unit is supplied with standard US 3 prong male grounded power plug. The instrument is equipped with a 3 prong grounded US male plug (standard). Do not modify the plug or use an ungrounded 3 prong receptacle. If an extension cord is required use heavy gauge fully grounded cords only.
Operating Procedure: Activate the SL-001 overhead ionizing blower by turning fan speed knob clockwise. The ionization indicator will illuminate and indicate the presence of ionized air. Airflow speed can easily be adjusted utilizing the fan speed knob. The time required to neutralize electrostatic potential is dependant on distance of ionizer to work surface and speed of fan. When used in electronic assembly the ionized air stream should cover as much of the working area as possible. The constant flow of ionized air prevents items from developing an electrostatic potential.
Routine Maintenance Overview: Clean emitters as needed. To clean ion emitter points press and turn point cleaner knob (located in middle of air outlet) clockwise approximately one turn and release. Clean air inlet and outlets as needed with a soft brush or vacuum. Replace filter as needed. Periodically test ion output as indicated by your internal esd program or ANSI/ESD S 20.20-2007, TR53, Air Ionizer Compliance Verification (discharge time and offset voltage). Offset voltages of >+/- 50 volts or decay times that exceed specification (user defined but typically <1.1 sec @ 60%rH and 68 deg F. with ionizer positioned 24" from work surface) may indicate the need for replacement of emitters. Normal emitter life is 3 years, replacement emitters are easy to install and available from united ESD.
|
