ElectraWear Lab Coat Style ESD Smock (Part Number EWC)

Size Chart, Specifications, Cleaning & Warranty

ElectraWear EWC Main Page

Professional Grade and Fully compliant to the new ANSI/ESD S 20.20-2021 ANSI/ESD Static Control Garment Standards. Triple Stitched for maximum sleeve to sleeve and panel to panel conductivity. Unisex Design. Light in weight yet INDESTRUCTIBLE in performance. Designed and tested in the U.S.A.

Size Chart in Inches

Size	Length	Chest	Sleeve
Extra Small	36.75	45.5	22.5
Small	35.5	47.5	22.75
Medium	36.5	49	23.25
Large	37	50.5	23.75
X L	38.5	51	24.25
X X L	39	52	24.5
X X X L	40	55	25
4XL	40.75	57.5	25
5XL	41.5	59.5	25.5
6XL	42	60	25.75

Note: Due to fabric elasticity all measurements are +/- 1 inch.

How they are Measured

ESD Smock Length

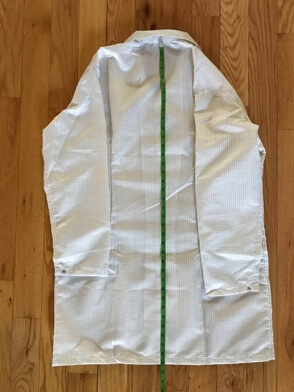

Length: Measured from the center back of the neck to the finished hem.

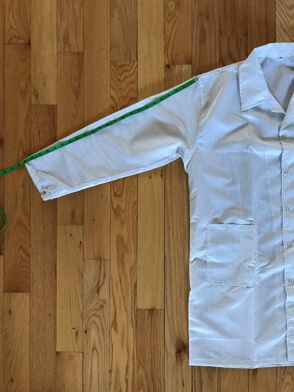

Sleeve Length: Top of the shoulder seam to the bottom of the sleeve hem
Chest

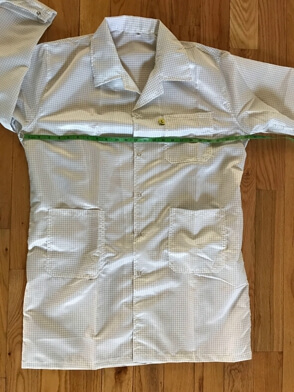

Chest: Measured underarm to underarm times two.

Specifications

Electrical Resistance	>1.0E06 to <1.0E09 (static dissipative)
Sleeve to Sleeve Resistance	<1.0E09 (static dissipative)
Glass Transition Temperature	250 degree F.
Composition	96% Poly, 4% nylon carbon monofilaments
Tear Strength:	warp: 3.0 kg / weft: 1.9 kg (JIS L1096-6.15.5-D)
Flash Point:	1040 Degrees F.
Yarn Type, warp and weft	Poly 75D/36F; Conductive 70D/25F polyamide base
Weave	2/1 twill with 5 mm grid
Air Permeability	6.0 CC/CM²/Sec (JIS-L1096-A)
ANSI/ESD S2020-2021	Compliant to Static Control Garment

Cleaning Instructions

Machine Wash these smocks on gentle cycle, cool to warm water (at temps of under 100 deg F). Use proper amount of a liquid mild non-ionic/anionic detergent (like Tide 2x or similar) that contains no fabric softeners. Do not bleach. Wash smocks separately, do not mix with other industrial laundry. For best results simply hang dry (they dry very quickly). To machine dry: Do NOT use fabric softening sheets. Dry on low setting (do not dry at temperatures over 100 deg F), do not tunnel dry. These smocks dry very quickly, do not over dry or wrinkling may occur. Hand washing: These smocks may be hand washed with the same basic instructions as above.

Warranty

The conductivity and mechanical performance of this garment is Warranted for one year or 100 washings if the instructions for cleaning as listed in the above table are followed rigorously. This warranty is void if the garment has been permanently altered, burned or defaced.
