ESD Concrete Sealers / ESD Concrete Floors

Economical, Long Life, Beautiful Shine, ESD Compliant

ElectraSeal Main Web Page With Pricing

Order this product online



ELECTRASEAL ANTI STATIC ESD CONTROL CONCRETE SEALER!

Today's reality dictates an increasingly daunting task. To meet the latest ANSI ESD static control standards and assure your successful manufacturing of static sensitive electronics esd flooring is a must! Yet in today's economy does it make since to pay $7.00 to 10.00 per installed square foot for esd tiles, thick set esd epoxy or an anti-static rubber floor? Most think NOT! ElectraSeal seals concrete with an effective static control formulation designed to meet today's latest requirement and eliminate dust production of the concrete slab for less than $.20 cents per square foot!



WHY A STATIC CONTROL CONCRETE SEALER?

Cost, Performance and Longevity. A typical concrete slab will post fairly good electrical conductivity due to the moisture content of the concrete.  Unfortunately this electrical conductivity fluctuates dramatically with the ambient humidity and moisture content of the slab. In addition, unsealed concrete is dusty, absorbs contaminants such as oils and liquids and ends up being a time consuming maintenance nightmare!



RELIABLE ANTI STATIC PERFORMANCE, OUTSTANDING VALUE!

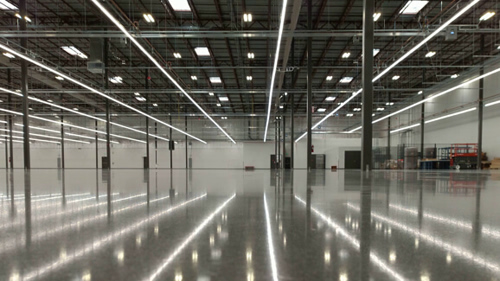

concrete coated with anti static esd conductive sealer

concrete sealer makes any floor anti-static arrowPermanent static control performance!

conductivity compliant to many esda specifications arrowEliminates concrete dusting!

economical esd flooring sealer for static control floorsClean, high tech glossy appearance.

EsD Flooring, Static Control Mats, ESD Ionizer ArrowEconomical yet durable and long lasting.

static control concrete sealer, economical and long lasting esd flooringLOW Odor, LOW VOC's (<55) click here for test results Meets new green building standards! ElectraSeal is designed for us on unsealed, indoor, cast in place concrete slabs but will bond to a variety of sealed and unsealed concrete (pretesting is always recommended).

APPLICATION IS FAST, EASY AND LOW ODOR!

Best results are obtained when ElectraSeal is applied to cured concrete slabs which are 60 Deg F. or warmer and in relative humidity conditions of < 50%. Remove nuisance dust by sweeping with a soft bristle broom. A sweeping compound that does not contain oil may be used if needed. Thoroughly vacuum slab to remove any remaining loose dirt or dust.  If contaminants such as oil and grease have soaked into the slab wash with ElectraClean rinse slab and allow to dry completely prior to application of ElectraSeal. Three coats will provide the optimum gloss and durability. Apply thin even coats using new loop end rayon or other non linting finish mops, allowing ElectraSeal to dry, (depending on humidity and temperature) for approximately 60 minutes between coats. Typical life span of product is approximately 3 years and dependant on traffic and maintenance. ElectraSeal May be effectively recoated without removal. For best results do not burnish.  If a higher luster is required top coat this material with one thin coat of ElectraGlaze floor finish prior to high speed polishing.



EASY TO MAINTAIN!

ElectraSeal is an extremely durable Anti Static concrete sealer. After application and curing of ElectraSeal routine maintenance (to be expected with any floor) is all that is required to maintain the luster and conductivity of the finish.  It's important to remove abrasives that can scratch and degrade the conductivity by dry mopping (usually on a daily basis).  On an occasional basis (most of our clients prefer to do this once every week or two) damp mop the floor with a diluted mixture of ElectraClean and water and allow to dry. Note: Use only ElectraClean to damp mop your ElectraSeal floor, NEVER wash any esd floor with plain water. ElectraSeal does not readily lend itself to high speed polishing or burnishing.  If a high speed polishing (produces ultimate shine) is desirable top coat the ElectraSeal with a single coat of ElectraGlaze prior to polishing.



SPECIFICATIONS

Note: The following specifications pertain to the product as applied to indoor, unsealed, cast in place concrete flooring slabs.


Nonvolatile Solids 22% +/- 0.5%
Total Active 26.5%
ESD S7.1 (PTP and RTG) @ 100 VDC < 3.5E07 @ 40% Relative Humidity
STM 97.1 < 3.5E07 @ 40% Relative Humidity
STM 97.2 < 100 Volts @ 40% Relative Humidity
Static Dissipation < 0.02 Second
pH 8.4 - 9.0
Gloss 60 0 85+ @ 3 coats
Color Translucent white
Weight Per Gallon 8.45 - 8.6
Slip Resistance (ASTM) 0.65 Minimum (excellent)
Stability 2 year minimum
at room temperature
Freeze/Thaw Stability 3 cycles minimum
Drying Time Between Coats 1 Hour
Water Resistance Good
Gallon Coverage (Feet 2 ) 1500 - 2000 per gallon per coat
Removability (Gardner) 75 cycles maximum
VOC Emissions per EPA Test Method 24 < 55 grams per liter



COVERAGE,  AVAILABILITY AND MSDS SHEET!

Typical coverage: 1,500 to 2,000 SF per gallon per coat

1 gallon container: weight 10 lbs, our part number E-Seal 1

1 case (4 ea 1 gallon containers): Weight 40 pounds, Our part number E-Seal 4

1 ea 5 gallon container: Weight 50 pounds,  Our part number E-Seal 5

MSDS SHEET

United Static Control Products

Phone: 719 676 3928     Fax: 719 676 3929
