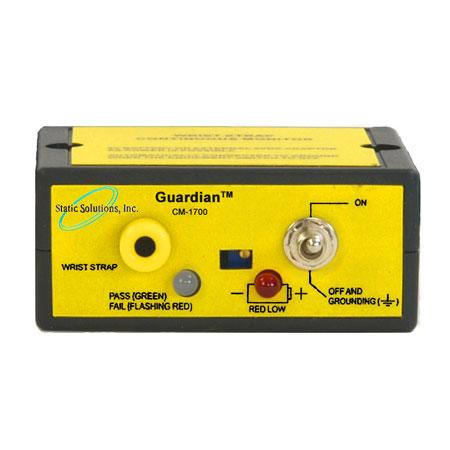

CM-1700 ESD Constant Monitor

SCCM-1700

Constant Monitor for ESD Control

The SCCM-1700 monitors a single Technician/ESD wrist strap

MSRP: $49.00

Features:

• 100% continuous monitoring
• Works with standard one conductor wrist straps/cords
• New technology -capacitance/impedance hyper technology
• NIST calibration included with certificate
• Visual LED, audio piezo sound
• AC powered or 9 volt battery operated
• Off/On switch
• Set points can be adjusted for impedance of wrist straps and the capacitance of a person.

Specifications:

• Size: 3 in x 2.75 in x 1 in.
• Mounting: hook/loop and screws.
• Safe limits: .75-1.2 megohms. Impedance can be adjusted according to weight and size of operator.
• Fail limits: Below .75 megohms and over 1.3 megohms.
• Visual alarm: red-fail, pass-green.
• Audio alarm: piezo buzzer.
• Operation:
  - active when switch tuned on.
  - Inactive when power switch turned off, cord on docking snap, wrist strap on and green piezo on.
  - Wrist straps connected to ground even if monitor turned off.
  - Trigger impedance not changed by change of incoming voltage.
• Power: 110 volts or 9 volts battery with low power LED.
• Socket: banana plug.
