ElectraFloor Titanium

ESD Chair Mats for Static Control

Laminated Conductive ESD Floor Mats

Perfect for use over raised access panels and ceramic tiles



For all hard surface flooring including raised access floors, rough concrete and ceramic tile

Perfect for protecting and improving conductivity of anti static flooring, ESD Flooring Tiles, standard hard surface flooring (of all types) including epoxy, concrete and more. Excellent for use as a permanent or temporary esd safe workstation mat, easy to ground, easier to install!



MEETS LATEST STANDARDS AND RECOMMENDATIONS OF EOS ESD S2020-2007!



TV StaticProtects your flooring investment from scratches and gouges caused by chair casters!

TV StaticOutstanding conductivity for use in sophisticated esd control areas!

TV StaticFor use on ESD AND non ESD hard surface flooring. Allows chair to roll smoothly!

TV StaticLifetime Warranty on conductivity, wear, chipping, shattering and breaking!*

TV StaticUltimate ESD compliance for THE most sensitive of electronic components!

TV StaticMeets the latest specifications for conductive ESD flooring per EOS ESD 2020-2007!

TV StaticPass ISO and ESD Flooring / floor mat audits, 97.1 technician / heel strap / floor mat testing and esd chairs to ground testing with EASE! TR53 FRIENDLY and designed to last a Lifetime!



Let's face it. In the old days (as of six months ago;) antistatic chair mats and flooring sometimes complied with EOS ESD S 2020 by providing a resistance to ground slightly below 1.0E09. But with today's new requirements the esd flooring (or matting) surface must fall in the conductive range of <1.0E06 to provide the recommended resistance between the operator / heel grounders and floor matting surface of <3.5E07.  In addition the combination resistance of esd chairs and matting to ground of must be below 1.0E09 constantly.  Why the changes?  Many sophisticated components are simply too susceptible to damage from even low voltage electrostatic potential.



TYPICAL ANTISTATIC CHAIR MAT

FAILED PER EOS ESD S 2020!

Click to Expand

Many ordinary anti-static (>1.0E06) chair mats rely on the ambient humidity in the environment to render the mats even slightly conductive.  When the humidity is high (>60% rH) they sometimes meet the old specifications for conductivity (coming in slightly less than1.0E09) BUT when the humidity drops they become insulative! A mat's electrical conductivity to ground tells the tale. Does this  mat really work? Not really. A piece of dry wood comes in about as conductive as this popular mat AND it's not even close to being conductive enough to comply with the latest specifications for EOS ESD S2020 for conductive flooring or 97.1 technician / heel straps / flooring requirements.



  Eventually ALL materials get rid of static, the questions is; can your critical electronics wait?



We start by providing a high grade heavy duty non cleated chair matting selected for it's mechanical integrity, clean the top surface to remove contaminants and cover with our unique ESD conductive adhesive.  This adhesive is allowed to cure and subsequently covered with our Titanium ESD Flooring.  The ESD Flooring material is rolled onto the adhesive, allowed to cure and fully tested to S2020-2007,  97.1 and 7.1 standards using NIST certified equipment prior to shipment.  Attachment to ground is provided via 10mm male grounding terminals provided on the outermost corners of the mats.  Simply attach the ground cord (provided with the mat) to one of these terminals and attach the opposite end (ring terminal) to the center screw of a electrical faceplate cover or approved common point ground block.



1

2

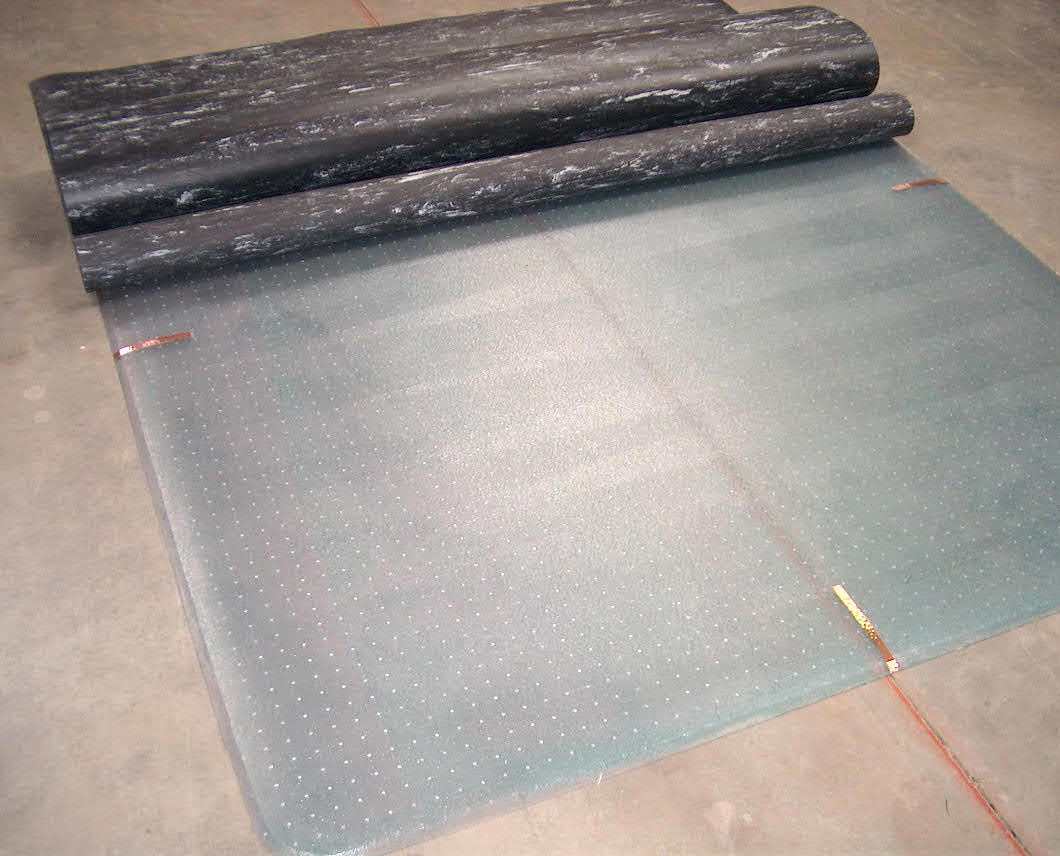

This mat has had the selected covering roughed out, grounding straps applied and has been covered with our unique esd conductive releasable adhesive

This client has chosen a black and white covering but with multiple color selections available colors are YOUR option

  • Excellent for use over ceramic tile, raised access, hard wood, concrete, esd vinyl, epoxy and VCT floors
  • Heavy Duty Vinyl, textured non-cleated bottom. Straight cut edges, a full 0.205 Thick!
  • Lifetime warranty against cracking, chipping or shattering (under normal use)

Quantity discounts available

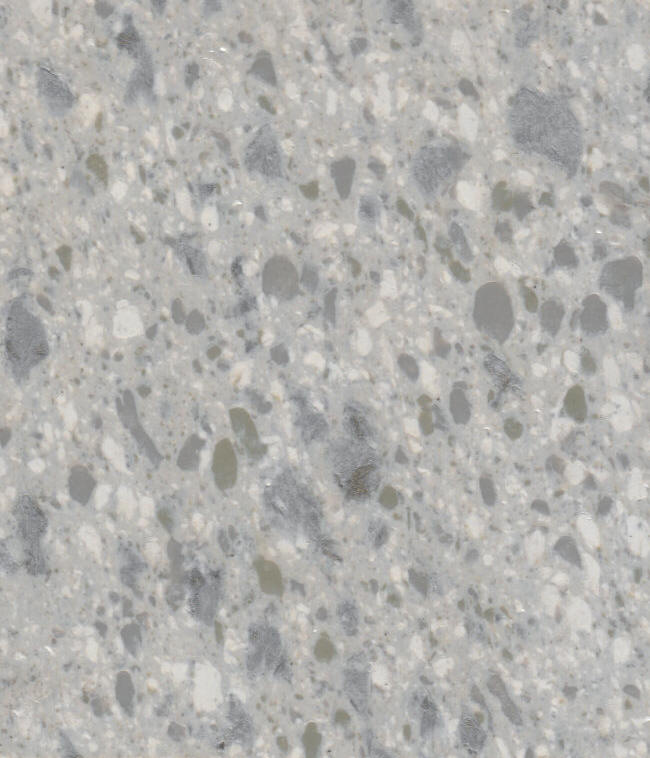

Pale Gray

PN: Ti481

Dark Gray

PN: Ti482

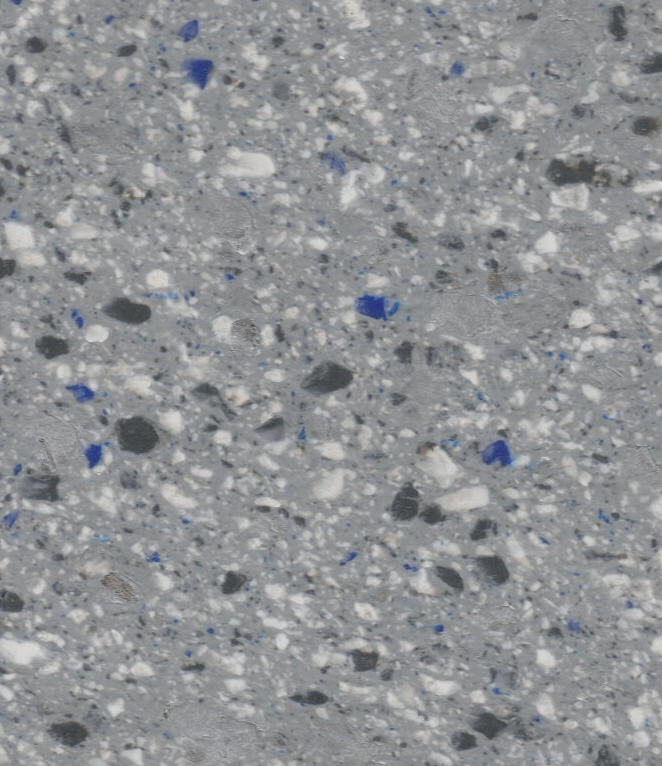

Electronic Blue

PN: Ti483

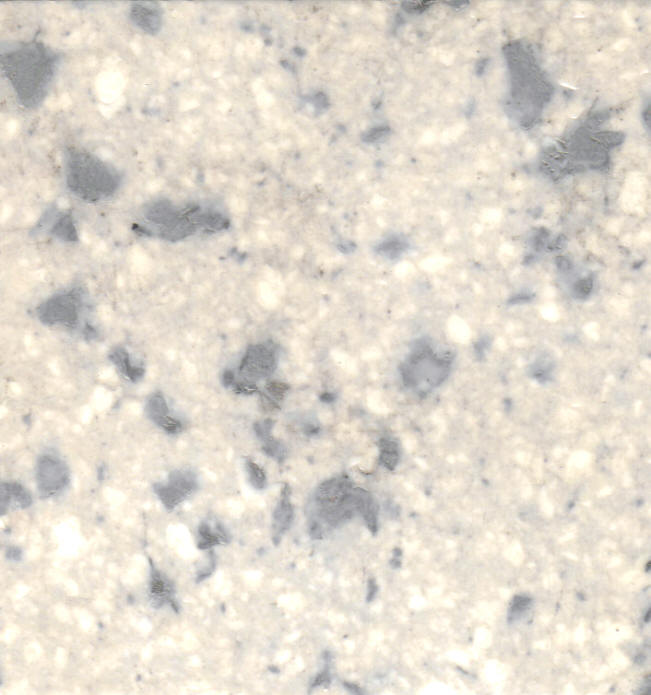

Clean White

PN: Ti480



UltraStatic Control Laminated ESD Chair Mat for Hard Surfaces
  Part# 40220 HS-A,  Plus Size and Color

ESD Chair Mat for Hard Surface Flooring

36" x 48" $176.52
45" x 53" $246.29
48" x 60" $258.61
48" x 72" $303.79
48" x 96" $389.05
60" x 60" $315.83
60" x 72" $360.92
60" x 96" $471.25
