ElectraFlow®
|
SL-002 Overhead Dual Fan ESD Ionizer
With Work Light |
 Select
a 3 or 4 fan overhead esd ionizer
 Our SL-002 overhead
ionizer, powerful performance, outstanding reliability and
preferred over our competitors by
major companies world wide. At United we
believe in saving your ESD program a
substantial amount of money! Our SL-002's feature a light weight construction (important when mounting
overhead) in combination with high volume, high output dual fan air
displacement. The SL-002's are perfect for medium
size esd work stations and esd benches. The SL-002's are quiet,
with easily adjustable air flow, provide on demand overhead lighting
and have built in emitter point cleaners and heavy duty tungsten
emitters for fast, easy maintenance and long life high performance
output.

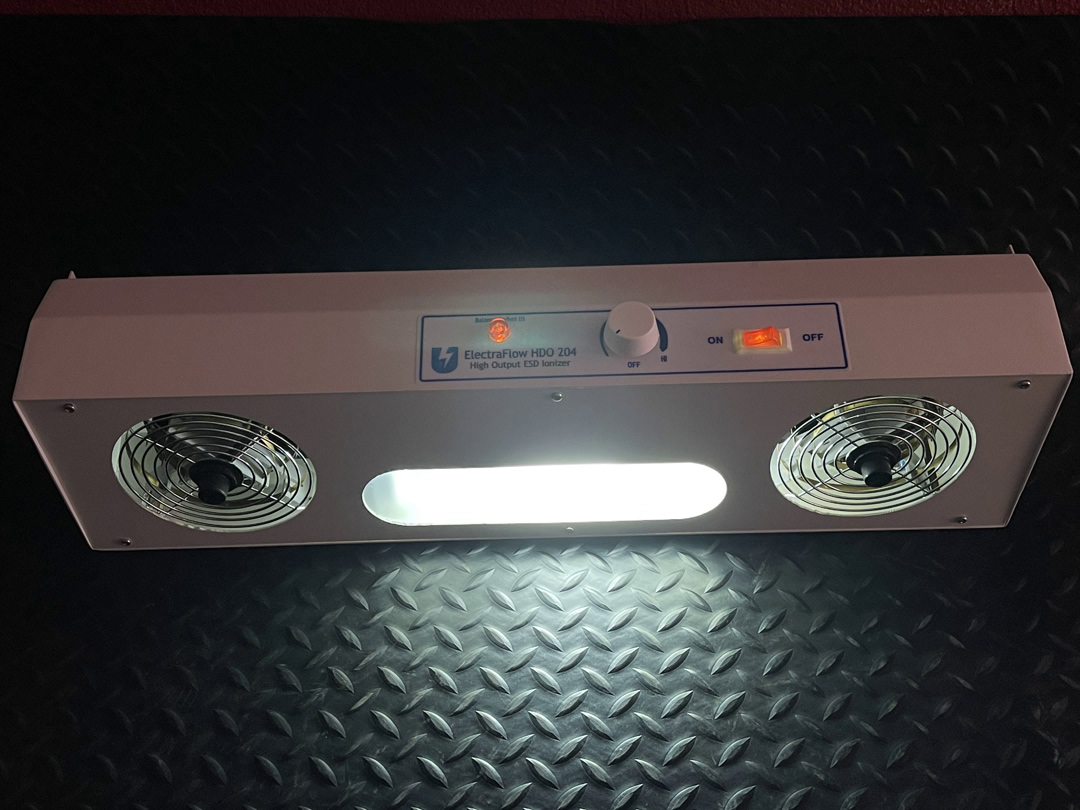

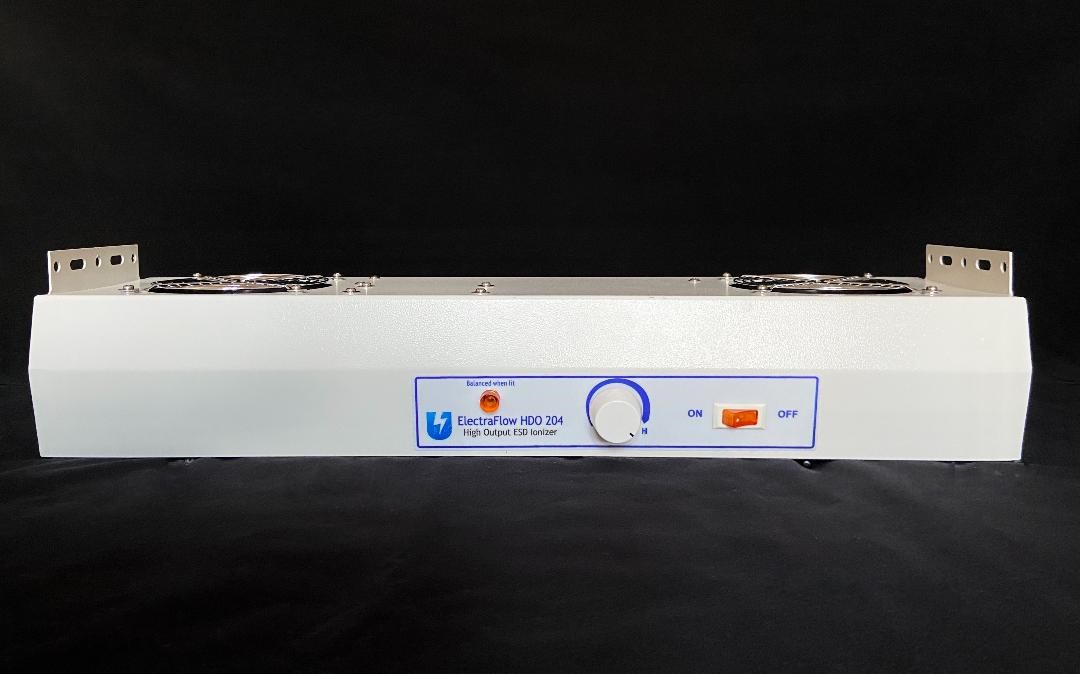

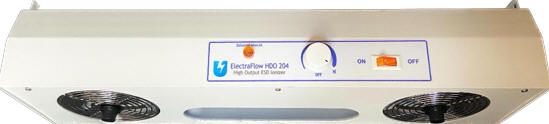

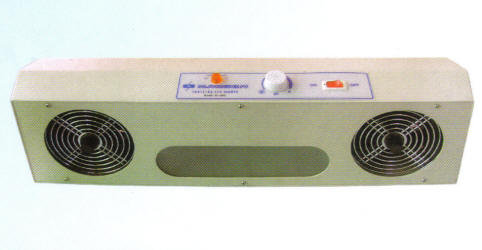

SL-002 Dual Fan Overhead Ionizer
Price:
$573.00 ea with FREE SHIPPING*
Buy Online
Outstanding
quality, ISO manufactured!
Powerful
performance, highly reliable!
Low maintenance.
Easy to maintain!
Certificate
of compliance provided at no charge!
Precision
+
/ - 10 volt offset voltage balance!
Built
in emitter cleaning brush (point cleaner knob).
Self
balancing, factory calibrated!
NO further calibration
typically required.
Mounting
brackets included at no charge!
CE
Certified, designed to last a
lifetime!
|
The
SL-002 meets or exceeds the recommended technical
requirements of ANSI/ESD S 20.20- 2007 tested in accordance
with STM3.1. |
Specifications
| Line Voltage |
110V/60Hz standard, 220V/50Hz optional |
| Current Draw |
Max 0.9
Amp (fan high, light on)
Min 0.45
Amp (fan low, light off) |
| Operating Temperature |
0 ~50°c (32o F to 122o F) |
| Weight |
5.3 kg (11.68 pounds) |
| Finish and casing material |
Powder coated aluminum alloy |
| Size |
610 (L) x
170 (W) x 120 (H) mm
(24.2 x
6.69 x 4.72 inches) |
| Air volume output |
Fan speed low: 80 CFM
Fan speed high: 220 CFM
Note: Flow amount equals sum of dual fan
operation. |
| Recommended distance from
work surface |
600 to 900mm (24 to 36 inches) |
Decay Test Results
|
Testing
Condition, decay time in seconds |
|
Operating
Voltage: 110V/220V, Testing Voltage: 1kV to 100V,
Temperature: 22°c |
|
Distance
|
300mm |
600mm |
900mm |
| Left |
0.7 |
2.1
|
3.2
|
| Center |
0.6 |
1.9 |
2.5 |
| Right
300mm |
0.7 |
2.0 |
2.9 |
Note the following
are overviews, please see manual (included with product) for
full details.
Installation
Fast Facts: Install

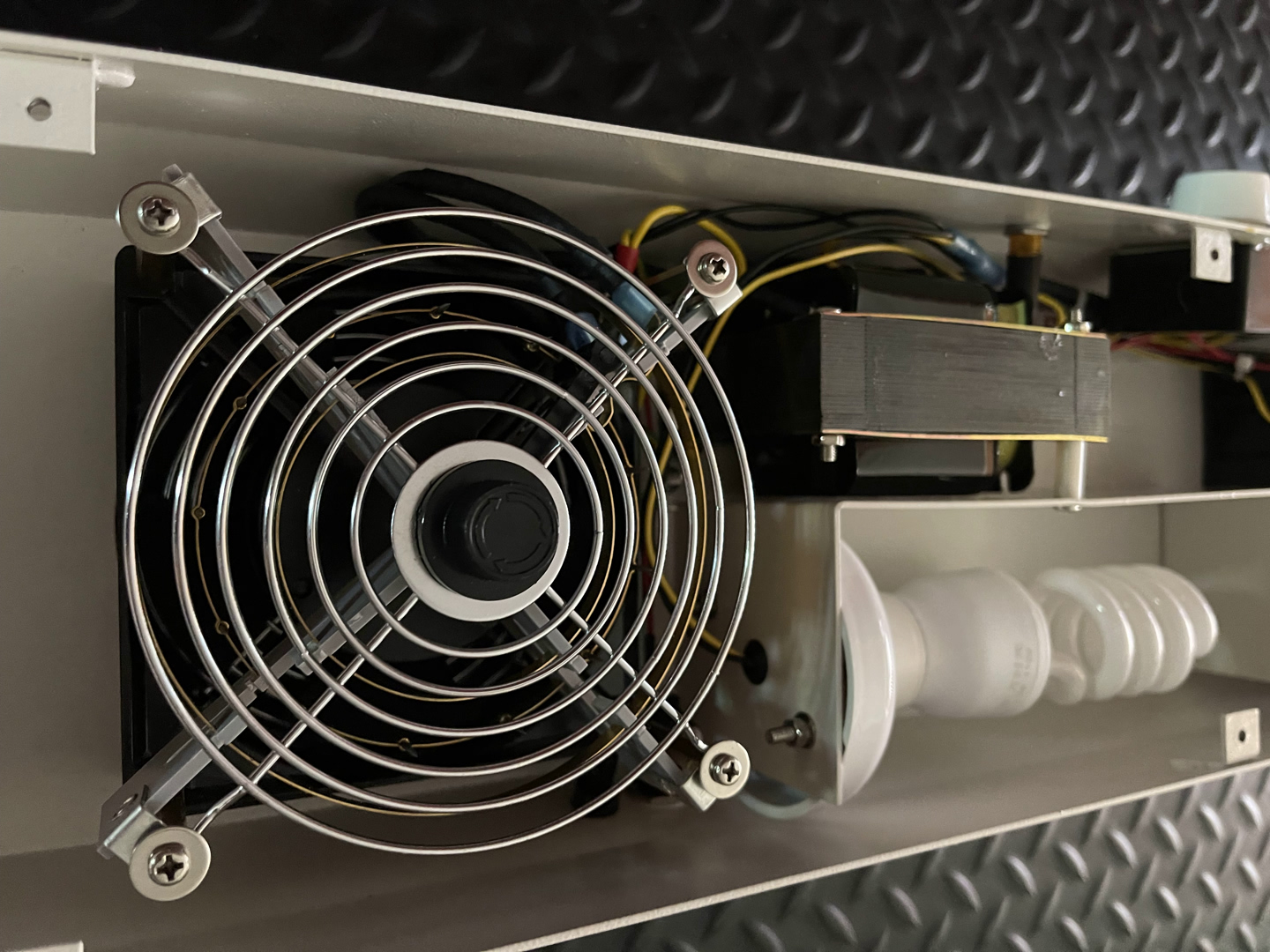

fluorescent light bulb into ionizer by removing front cover
with a screw driver, unpacking bulb, screwing
into place and replacing the front panel. The SL 002
is an overhead unit designed to provide ideal coverage for
control of electrostatics. Note: Do not insert objects into air intake or
outlet grille and do not operate the SL-002 in inflammable or
explosive environments. The SL-002 ionizers should be
affixed
600 to 900mm (24 to 36 inches) above the work surface with center targeted
directly over work area. Avoid drafty locations such
as that caused by air conditioning, heater outlets, etc.
Attachment to
overhead supports: Mounting to ceilings and
shelves; S
hooks and chains may be used for mounting the ionizer to structurally sound ceilings or wire
shelves. Chains and mounting hardware should have a minimum
safe working load of at least 30 pounds. When mounting the unit to
ceilings it's important to check state and local codes to
insure compliance. The units are typically hung in the
same fashion as overhead light fixtures (independently
attached to overhead building superstructure). Attaching to
suspended ceilings only are typically not compliant with

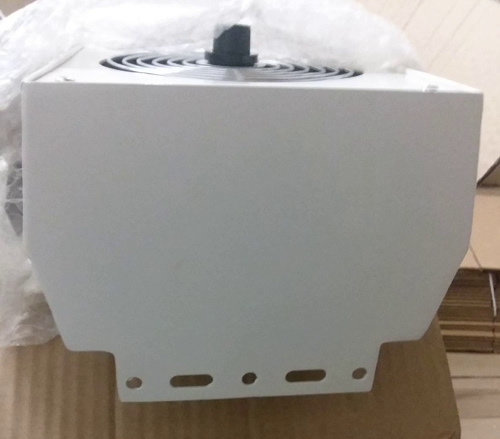

local codes. Mounting to workbench overhead supports; The SL-002
may be mounted to work bench overhead shelves and beams using the adjustable mounting brackets
included with your order.
Electrical
Requirements: The SL-002 requires 110VAC /60Hz
(standard) or 220VAC / 50Hz (optional) power. These
units must be grounded. Each unit is supplied with standard
US 3 prong male grounded power plug (standard). Do not modify the plug or
use an ungrounded 3 prong receptacle. If an extension cord
is required use heavy gauge fully grounded cords only.
Operating
Procedure:
Activate the SL-002 overhead ionizing blower by turning fan
speed knob clockwise. The ionization indicator will
illuminate and indicate the presence of ionized air.
Airflow speed can easily be adjusted from 0 to 100% utilizing the fan speed
knob. Light is provided via a simple on/off switch.
The time required to neutralize electrostatic potential is
dependant on distance of ionizer to work surface and speed
of fans. When used in electronic assembly the ionized
air stream should cover as much of the working area as
possible. The constant flow of ionized air prevents
items from developing an electrostatic potential and
neutralizes electrostatic charges present on items
introduced to the airflow.
Routine
Maintenance: Clean emitters as needed (usually every two
to three weeks in heavy service). To clean ion emitter
points press and turn point cleaner knob (located at each
air outlet) clockwise approximately one turn and release.
Clean air inlet and outlets as needed with a soft brush or
vacuum. Periodically test ion output as indicated by your
internal esd program or ANSI/ESD S 20.20-2007, TR53, Air
Ionizer Compliance Verification (discharge time and offset
voltage). Offset voltages of > +/- 50 volts or decay
times that exceed user defined specifications (typically
<1.1 sec @ 60%rH and 68 deg F. with ionizer positioned 24"
from work surface) may indicate the need for replacement of
emitters. Normal emitter life is 3 years, replacement
emitters are easy to install and available from United SCP.
|
