ElectraGuard ESD Flooring for Static Control

Perfect for covering concrete, VCT, Epoxy and low performance (anti-static) vinyl esd floors!



ELECTRAGUARD ESD EPOXY FLOORING SYSTEM

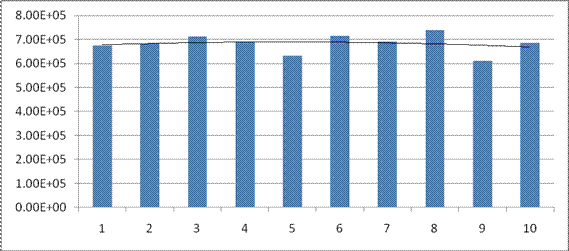

Electrical Resistance per ANSI/ESD 97.1

 (Combination resistance of technician / heel grounders and flooring)

Conditions: 36.1 % rH, 68.2 deg F @ 10 VDC

Minimum: 6.11E05     Maximum: 7.39E05

Median: 6.87E05     Average: 6.83E05

PASS <3.5E07





Conclusion: This flooring material falls in the low to mid to static conductive range of electrical resistance. It has passed ANSI/ESD S 20.20-2007 (mandatory in 2009 and the latest standards), Personnel Grounding Requirement, Method 1, ANSI/ESD STM97.1 (product qualification) and ESD TR53 (flooring section compliance verification).  In witness of the collected data and results obtained I hereby certify.



Director of Engineering

United ESD Inc
