SI-237

ESD Sole Grounder Specifications

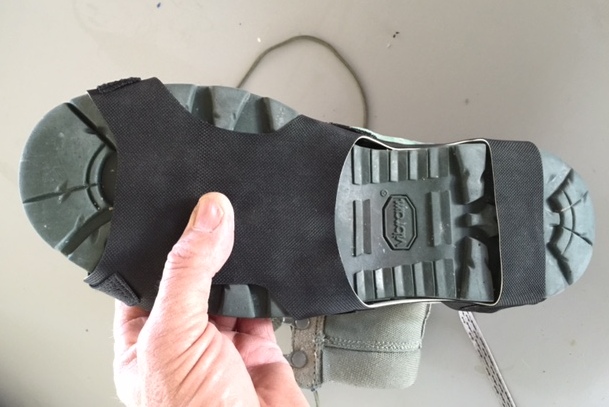

Full Sole ESD Grounder PhotoPRODUCT DESCRIPTION: The SI-237 full sole foot grounder provides a continuous path of conductivity between the technician and a properly functioning ESD floor or floor mat, thus creating optimal elimination of technician generated static electricity. Unlike normal ESD heel straps that provide a mere 1.5 inches of contact, and only at the heel, our SI-237 covers both the heel and entire ball of the footwear which insures complete contact throughout the entire walking motion of the technician.

The sole pattern is made of a lightly textured black mar resistant carbon loaded vinyl conductive outer layer which provides maximum slip resistance and conductivity. The inner layer (that contacts the shoe) is made from a white mar resistant vinyl that prevents marks on shoes. The SI-237 is designed to fit a multitude of footwear including boots, sneakers and street shoes. These units include a Velcro hook and loop fastening system for easy adjustment of the tension over the toe and ankle portion of the shoe and an elastic strap that self adjust the tension of the strap length. This product is RoHS compliant and has been tested to ESD STM 97.2 - Floor materials and Footwear Voltage Measurements in Combination with a Person. Our SI-237 full sole foot grounder is an outstanding ESD Footwear component for use as the primary grounding method for ESD STM 97.1 Flooring-Footwear System-Resistance Measurement in Combination with a Person when used with static conductive flooring and matting (<1.0E09).

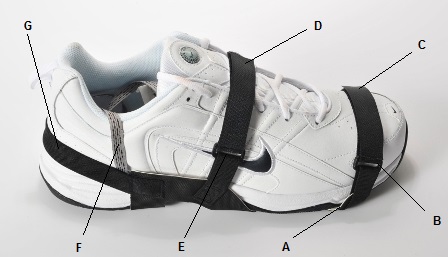

LEGEND

A

White non marring inner layer

B

1 inch Heavy duty D Ring

C

Velcro hook and loop (7/8" wide strap)

D

Velcro hook and loop (7/8" wide strap)

E

1 inch Heavy duty D ring

F

19" conductive polyester ribbon with 1 meg ohm resistor (standard)

G

3/4" Elastic adjustment

RoHS compliant statement: None of the following materials are intentionally added in the manufacturing of this product: lead, mercury, cadmium, hexavalent chromium, ploybrominated biphenyls (PBB) or polybrominated diphenyl ethers (PBDE) as outlined in Directive 2022/95/EC article 4.1.

Fully Tested and Compliant to ANSI ESD S20.20-21

Fully Batch Tested to ANSI/ESD SP9.2-2019

EXAMPLE:

Example of testing to ANSI/ESD SP9.2-2019

PN: SI-237

United SCP:

Approved: SRC

DOCUMENT NUMBER:

SRC30116B

DATE:

2.21.23
