US=ESD flooring/ESD Floors

ElectraTile ESD Tile for ESD Flooring

More options in ESD flooring



TV StaticNew: ElectraFloor Titanium Series ESD Flooring

The powerful new element in ESD floors for static control

Titanium like wear resistance, unrivaled electrical conductivity

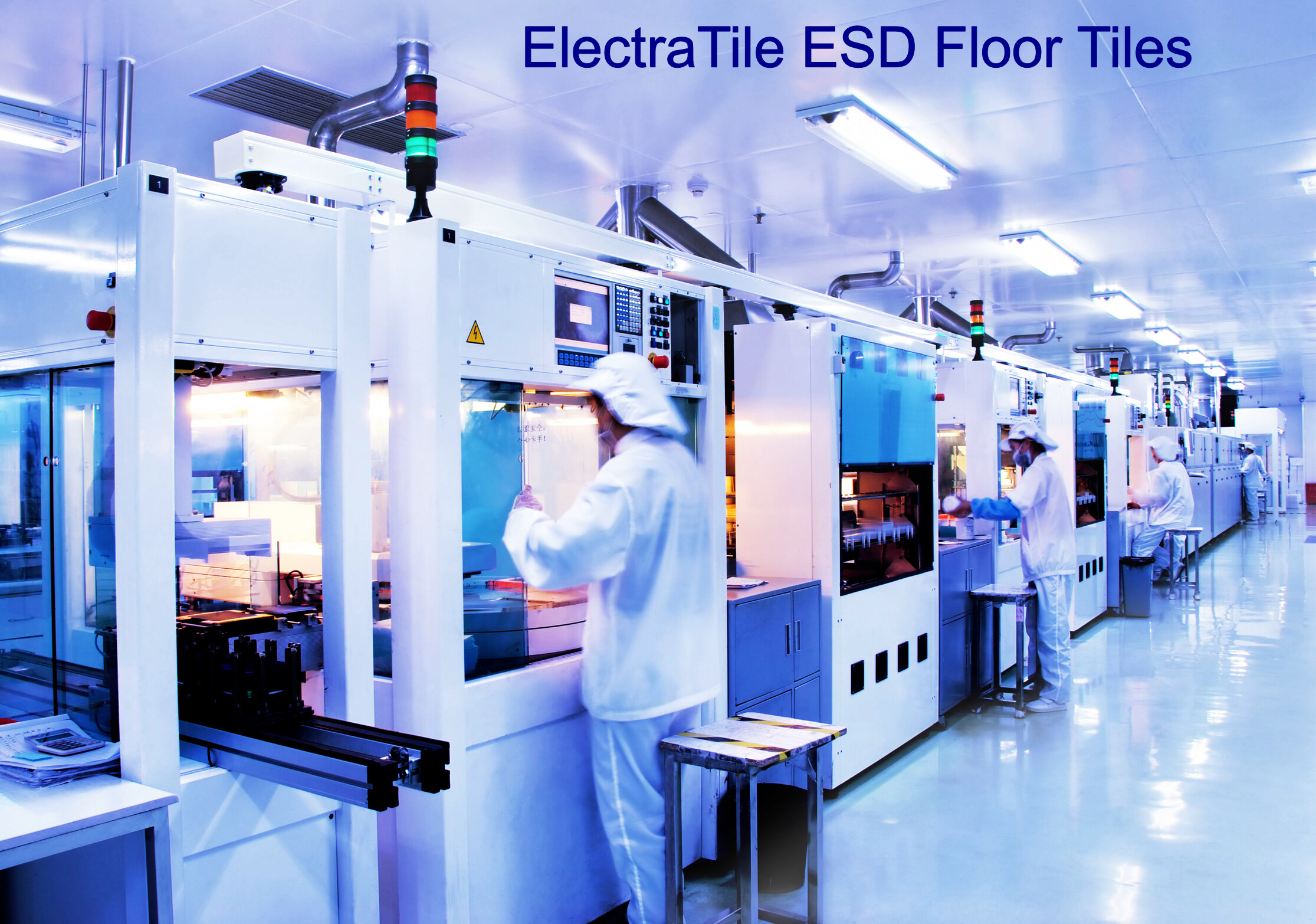

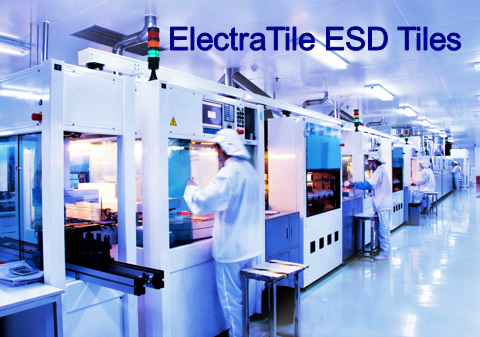

United ESD working in conjunction with a premier compounder of advanced "super vinyl ESD flooring" is proud to introduce ElectraTile to our highly efficient arsenal of ESD floor coverings. This proprietary material is actually sliced from a conductive, calendared, compressed vinyl block to assure a highly flexible tile of incredible density, electrostatic conductivity AND mechanical stability. ElectraTile ESD flooring features the highest rating for dimensional stability and compressive strength in the Industry. ElectraTile is supplied in the static conductive range of <1.0E06 and is the most conductive vinyl we supply (about 1.2E05 RTG) for the fastest, most complete charge decay of any esd vinyl tile in the industry. ET's outstanding micro finish provides a clean high tech appearance while it's superior total composition (devoid of cheap fillers and clay binders) provides unparallel wear resistance with a > 20 years life expectancy and a Lifetime warranty on conductivity. ElectraTile ESD Tile, THE choice for controlling esd in clean rooms, electronic or semi-con manufacturing, computer rooms, repair facilities or anywhere sensitive electronics are utilized.



XOstat on Raised Flooring

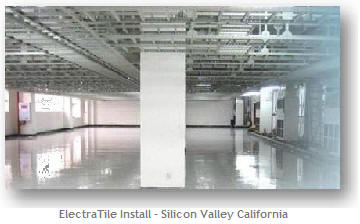

ElectraTile 2' x 2' ESD Floor tiles installed over raised access computer flooring.

ElectraTile requires no wax to maintain it's outstanding conductivity BUT many clients prefer to use 2 thin coats of our ElectraGlaze to seal minute seams and give the esd floor a diamond like brilliant shine.



ElectraTile: Permanently conductive throughout entire thickness of tile!

Outstanding Dimensional Stability!



Water jet example

ElectraTile: High dimensional stability perfect for Water Jetted Logo's and warning insert tiles

Dimensional stability is particularly important with raised computer floors allowing vent holes and cable openings to be cleanly punched without breaking or delaminating the vinyl.  In addition this "extreme" dimensional stability allows us to water jet cut these tiles with Company Logos, special warnings and other information, inserting any color (but same ESD conductive vinyl tile material) INTO the water-jetted tiles.





ElectraTile: Micro edged for near seamless appearance!

Fully heat weldable!



ElectraTile is fully heat weldable, if your floor becomes scratched or torn a simple welding process can restore the material to a good as new status. If your requirement's are no seams Electratile is PERFECT! Many clients choose a seamless esd floor for cleanliness. With heat welded seams dirt entrapment is totally eliminated and the looks? Outstanding!

Fully heat welded 2' x 2' ESD Tiles. Double click to expand

  • Permanent and Consistent ESD Properties
  • Resilient compacted non-porous surface
  • Won't flake, break, delaminate or degrade
  • Micro edged for near seamless appearance
  • Superior wear and stain resistance
  • Clean room compliant and DOP free
  • No carbon sloughing or out gassing
  • Lifetime warranty on conductivity
  • Permanent Installation OR Releasable
  • Extreme dimensional stability*
  • Fully heat weldable



Beautiful Colors!

Electrical and Physical Specifications

  Installation

Why US for your ESD flooring Needs?   How to ground your new ESD Floor.
