ElectraTile

 ElectraTile Conductive ESD Floor Tile:
(printer friendly specification sheet)

ISO Certified, UL Listed

ITEM Standard test Method ASTM Spec Conductive Tile
ELECTRICAL / ELECTROSTATIC PROPERTIES
Electrical Resistance
-Surface to Surface

-Surface to Ground 		ESD S 7.1 (100V / 10V)
ASTM F-150 (100V / 10V)
NFPA 99 (500V)
DIN 51953 (500V)
>2.5 X 104~<106Ω

2.5 X 104~106


>2.5 X 104
>2.5 X 104 ~ <8.3 X 105Ω
 Electrostatic Propensity
(=Static Generation)
AATCC 134
With heel grounders
-
<20 volts
 Static Decay Federal Test Method 101B Method 4046 at 15% Relative Humidity
 < 0.5 sec
 <0.01 sec
 OTHER PROPERTIES
CEN Classification DIN EN 685
Class 34 + 43
Composition of Material ASTM F 1700
Certificate of Compliance
Homogeneous
Thickness ASTM F 386, DIN EN 428
as specified ±0.005 in. (.125)
.125
Nominal Sizes ASTM F 536, DIN EN 427
±0.016 in./lin. Ft (0.4mm/304.8 mm)
12" x 12", 24" x 24"
Squareness ASTM F 540
maximum 0.010 in. (0.25 mm)
<0.010"
Residual Indentation ASTM F1914
DIN EN 433
average less than 8%,
max. single reading 10%
< 7%
Flexibility ASTM F 137
no crack or break
No crack or break
Dimensional Stability ASTM Fed. Std. No. 501a
Method 6211, DIN EN 434
<0.020"/ft (0.51 mm/304.8 mm)
<0.015"/ft
Resistance to Chemicals ASTM F 925
DIN EN 423
No more than a slight change in surface dulling, surface attack or staining
no more than a slight change in surface dulling, surface attack, or staining
Resistance to Heat ASTM F 1514
∆<8 ave., max
<∆E=2.0
Resistance to Light ASTM F 1515
∆E<8 ave., max
<∆E=6.0
Static Load Limit Modified ASTM F 970-00
-
>2,500 psi
Smoke Density ASTM E 662
<450
<450
Flame Spread ASTM E 84, NFPA 225
<75
<75
Fire Resistance DIN 4102
B1
Critical Radiant Flux ASTM E 648, NFPA 253
>1.08 W/cm2(class I Interior Floor Finish, NFPA Life Safety code 101)
 Abrasion Resistance ASTM D 1044,
CS-10-F Wheel,
500Gm Weight
Cycle
10,000
% Gauge Loss
1.60
 Resistance to Wear DIN EN 660-1
M
Effect of Castor Chair DIN En 425
No Damage
 Color Fastness ISO 105 B02
At least 6
Standard for Health Care Faculties NFPA 99
Confirms to the requirements of NFPA 99 in effect at the time of installation
Fulfils product requirements DIN EN 649
yes
Underwriters Laboratories UL 779
Meets UL Standard
WARRANTY
Free from defects in Workmanship and materials*
One Year, Optional Lifetime
Conductivity*

Lifetime

Real World Results, Real World ESD Tiles

Note: The resistant testing as listed below was performed on site and in accordance with the industry accepted standards of EOS-ESD 7.1 at a recent install at client facility.  The ElectraTile ESD Floor Covering was allowed to cure 48 hours prior to testing.  Installation substrate: new, cured concrete utilizing our conductive liquid adhesive and recommended grounding procedures.   Various conditions such as substrate, grades,  and humidity levels may somewhat alter the reading you receive at your facility.

ElectraTile: Highly Chemical Resistant!

Chemical Resistance: Exposure time 1 hour.               Highly CONSISTENT Electrical Properties

Sulfuric Acid (Conc.) 95%
Sulfuric Acid (77%)
Sulfuric Acid (5%)
Nitric Acid (Conc.)
Nitric Acid (5%)
Hydrochloric Acid (Conc.)
Hydrochloric Acid (5%)
Acetic (Conc.)
Acetic (5%)
Sodium Hydroxide (50%)
Ammonium Hydroxide (28%)
Methyl Alcohol
Ethyl Alcohol
Butyl Alcohol
Phenol
Benzene
Xylene
Cresol
Gasoline, Mineral Oil
Chloroform
Carbon Tetrachloride
Trichlorethylene
Acetone
Methyl Ethyl Ketone
Amyl Acetate, Ethyl Acetate
Silver Nitrate (40%)
Ethyl Ether
Formaldehyde (40%)
Iodine		 Slight Surface attack
No effect
No effect
Very slight surface attack
No effect
No effect
Very slight dulling
No effect
No effect
No effect
Slight Discoloration
No effect
No effect
No effect
Very slight surface attack
No effect
No effect
Very slight surface attack
No effect
No effect
No effect
No effect
No effect
Slight surface dulling
Slight surface dulling
Slight brown stain
No effect
No effect
Yellow stain

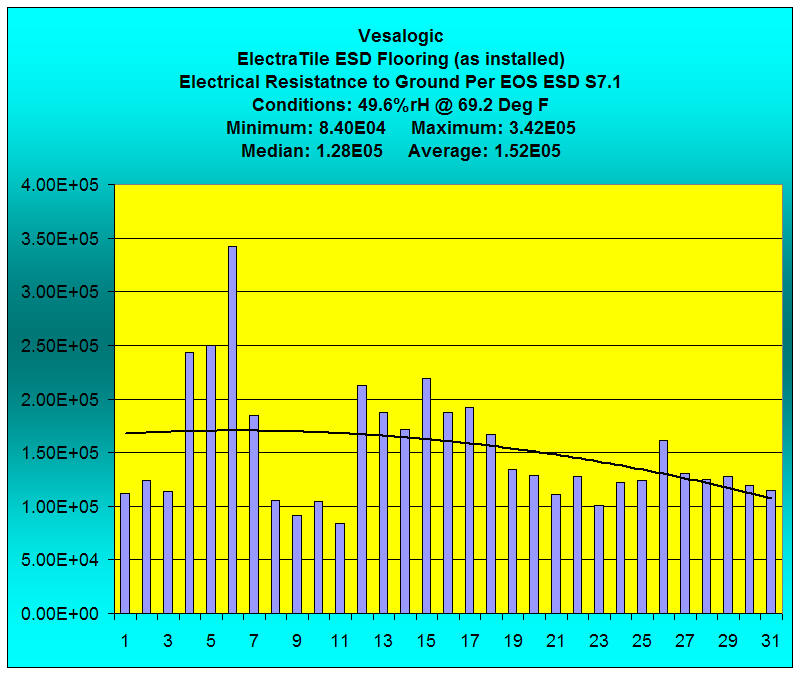

ElectraTile RTG Resistance Testing, As installed facility 1



Click for installed RTG, Testing by United

SERIES: Conductive
 ELECTRICAL PROPERTIES:
ASTM 150/EOS/ESD S7.1
 RTG: 2.4E04 to 8.3 E05

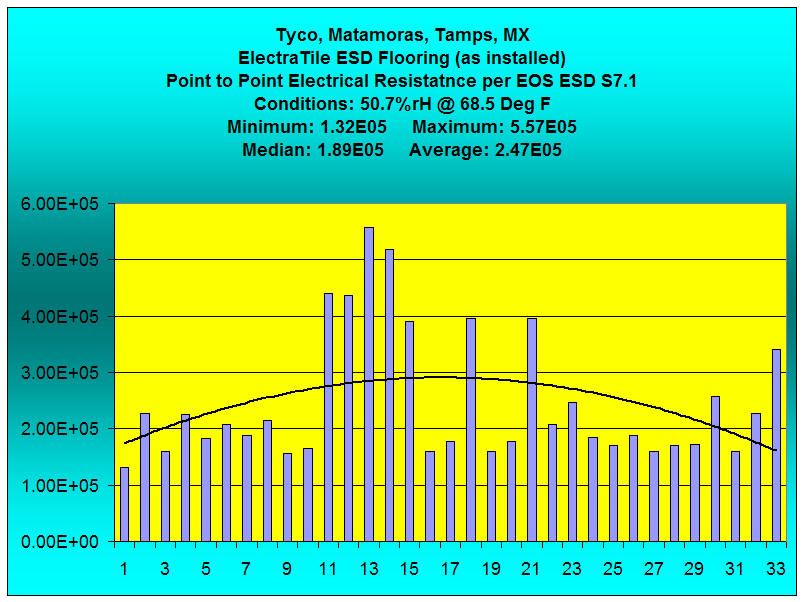

ElectraTile PTP Resistance Testing, as installed facility 2

Click for installed Point to Point, Testing by United

SERIES: Conductive
 ELECTRICAL PROPERTIES:
ASTM 150/EOS/ESD S7.1
PTP: 2.5E04 to 9.9E05

Check out this conductive adhesive compared to the old school adhesives!

NEW: ESD flooring Resistance Test Equipment

        Now available and approved for full Warranty with our one of a kind 2K4 releasable / permanent adhesive.

In Stock, Ready to Ship!





Click to Expand

ElectraTile Ice Blue,

PN ET-IB-24" x 24"



Slip Resistance
Meets or exceeds Federal standards and A.D.A. recommendations of .6 for flat surfaces.

Fire Resistance
Passes ASTM E-662/NFPA 258 (smoke density) 450 or less,  Passes ASTM E-648/NFPA 253 (critical radiant flux) Class 1

Click to Expand

ElectraTile White Ice,

PN ET-WI 24" x 24"



Standard Availability
12" x 12", 24" x 24" (.125 thick. Multiple color selections available 2 popular colors in stock



Packaging
2' x 2' - 40 SF per Carton

12" x 12" - 45 SF per Carton
