  ESD

Manufacturing Specifications / Electrical Testing By United SCP



Composition	Vinyl - extremely low fillers
General Performance
EN 649, ASTM F1913, ASTM F1700, AS2055.1	Passes
Reaction to Fire
ASTM E662	<450
ASTM E648	Class 1
EN 1350-1	Class Bfl-S1
EN ISO 11925-2	Pass
Electrical Properties
Static Conductive Variety - Testing per ESD S7.1. Note: The static conductive variety is not dependant on humidity for conductivity.	RTG: >1.0E04  <1.0E06 PTP: >1.0E04   <1.0E06 10 VDC @ 18% rH
Static Dissipative Variety - Testing per ESD S7.1. Note: ElectraFloor SD is reliant on ambient humidity for conductivity and designed to work in environments with a 45% or greater rH.	RTG: >1.0E06  <1.0E09 PTP: >1.0E04   <1.0E09 100 VDC @ 55% rH

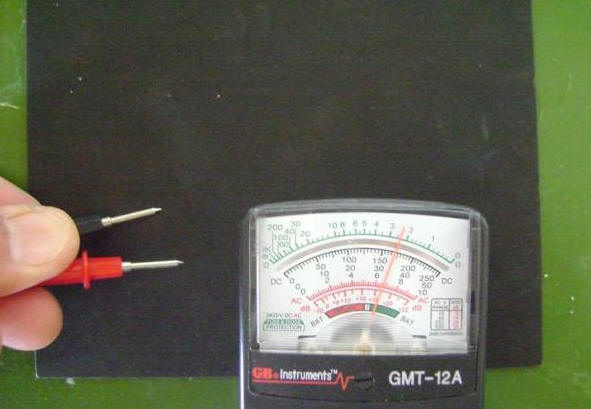

HIGHLY Conductive Variety - Testing per ESD S7.1. Note: The static conductive variety is not dependant on humidity for conductivity.	RTG: <1.0E04  PTP: <1.0E04   10 VDC @ 18% rH NOTE: This product does not minimum resistance levels and may constitute a safety hazard. Please click here to visit a photo showing High Cons typical conductivity using a volt ohm meter.
Mechanical Properties
Gauge	.080 inches
Tiles
Sheet Goods	6' 6" x 65 feet (2 x 20 meters)
Weight	6.45 pounds per Square Yards
Light Fastness
ISO 105-BO2 Method 3	>6.
Abrasion resistance
Frick Taber EN 660 part 2	EN 649 - Abrasion group M
Slip resistance
EN 13893	DS Classified

ElectraFloor main page

Installation

Specifications

Grounding

Colors

Options in Conductivity

Specifier Sheet

Mobile Data Sheet with Colors and Options

More ESD flooring

Electrical Testing by United SCP

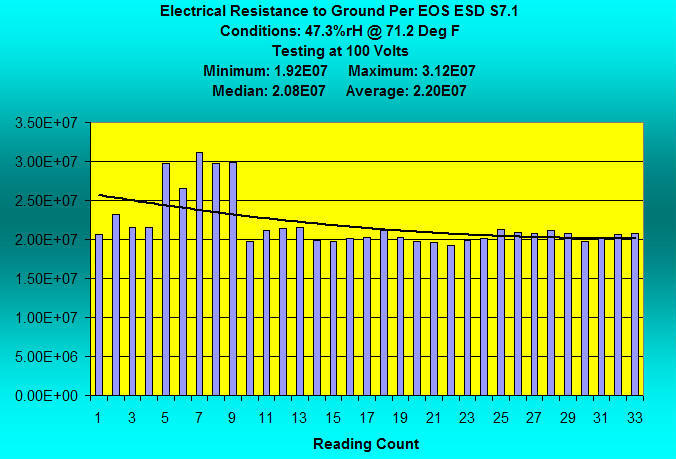

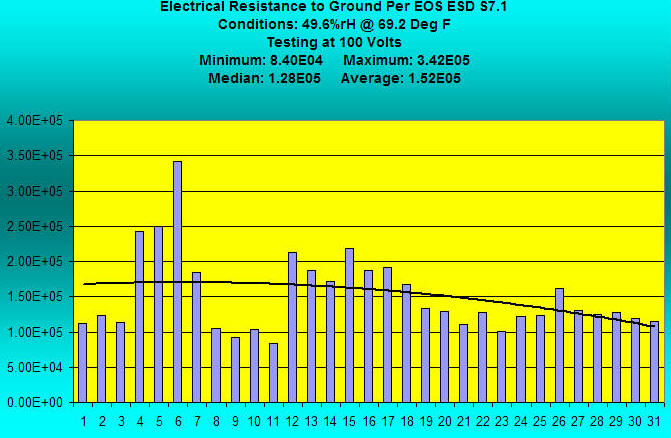

The following data represents electrical test results after installation at two locations in separate parts of the United States Testing was performed in accordance with industry accepted standards of EOS ESD 7.1. These floors were installed "on grade" and on concrete.   Further, the floors were grounded utilizing standard parameters shown in How to Ground your new ESD Floor.  Your results may vary due to substrate, substrate conditions and environmental conditions prevalent in your location.  As is the case with many of the modern ESD Vinyl's, ElectraFloor  is designed to work as a system in conjunction with C-2000, US C-2000R or URAS conductive adhesive.  When testing uninstalled, the static dissipative material (without the adhesive) will show a slightly higher resistance value than those posted in our electrical specifications (prevalent only with the static dissipative materials).  ElectraFloor static dissipative is designed with a built in resistance value that provides added safety to employees that may come into contact with higher voltage / amperage power sources. This added resistance has shown minimal effect in it's ability to control ESD.
