UltraStrong ESD Floor Mats

Mat kits & Full Rolls, the Toughest Most Dependable ESD Floor Mats in the Industry

Made in the U.S.A.



New! Full Rolls are eligible for Free Shipping in the Continental USA (details apply). New! Floor Mat Ground Cords included at NO CHARGE with each precut mat kit!



ESD_Floor_Mat_Testing_Photo

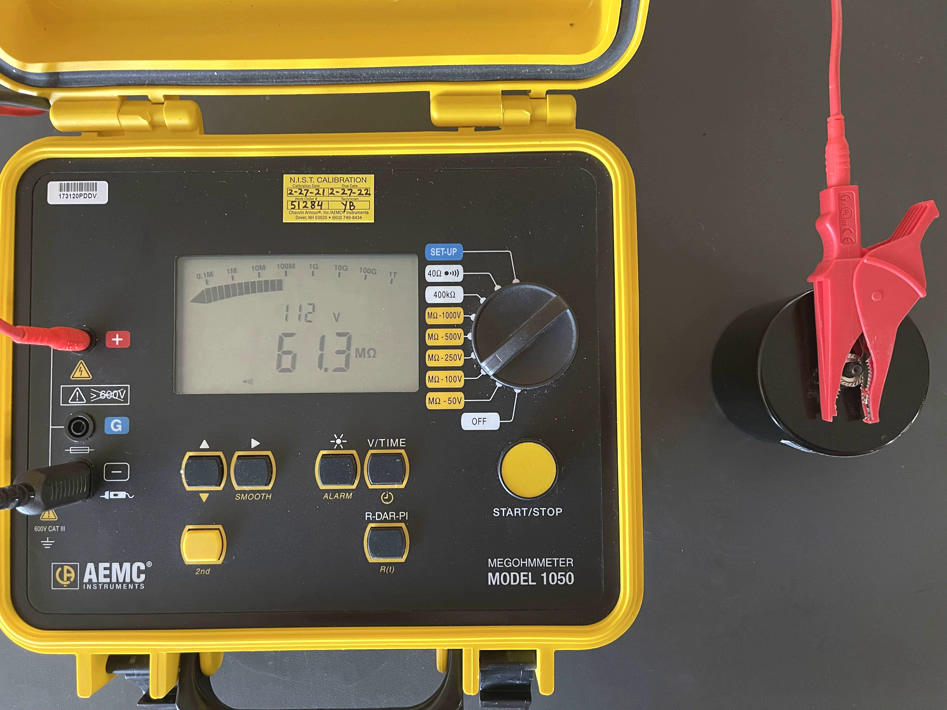

Photo: Testing the conductivity using a Megohmmeter

UltraStrong Tri-Layer ESD Floor Mat

Large Photo



UltraStrong advanced three layer ESD floor mats provide the utmost in anti-static protection. This easy to clean static control matting is highly resistant to abrasion, tears and cracking.  UltraStrong is recommended for use over hard surface floors such as Vinyl, VCT, Concrete etc. (Note: not recommended for use on carpet).



UltraStrong provides years' worth of ESD protection without fading or leaving residue on your existing floor.  UltraStrong handles chair caster traffic and carts without tearing, cracking or delaminating. UltraStrong's advanced Tri-Layer composition feature a static dissipative top layer bonded to a conductive inner scrim bonded to a static dissipative bottom layer for Ultimate static control protection.

Permanent anti static properties and NOT dependent on the ambient humidity for static conductivity.

  • Made in the U.S.A. Compliant to the Buy American Act

  • Long Lasting - Tough and Robust!

  • Resistant to cuts, tears and impact.

  • Resistant to ozone damage, fire and most chemicals.

  • Easy to clean sweep or hose off.

  • Vinyl composition ensures years of durable use.

  • Ideal for protecting large floor space in heavy use areas

  • Doesn't rely on ambient humidity for conductivity.

  • Permanently conductive.

  • Dependable Performance PASSES audits!

  • Perfect for covering ANY hard surface flooring!

  • Meets ANSI/ESD S20.20-2021, FAA STD 019e, ATIS-0600321, Motorola R56



Distribution Cut Sheet

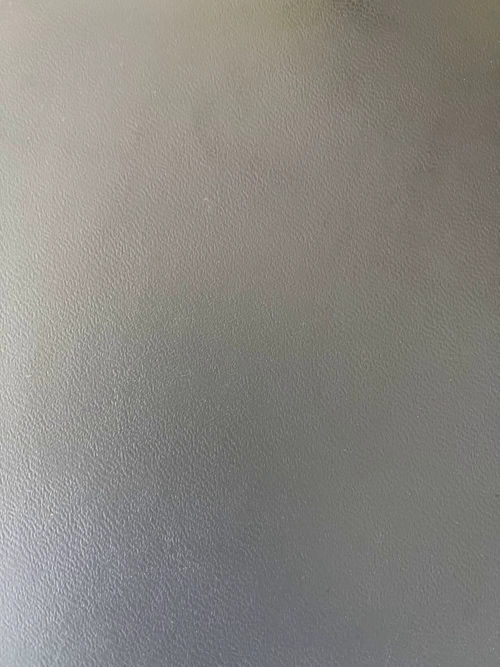

Gray Example

Blue Example

PHYSICAL PROPERTIES

Color:

Dark Gray

Thickness:

3/32”

Availability:

Rolls AND Pre Cuts

Weight:

0.8 lbs per SF Min

ELECTRICAL PROPERTIES

Point to Point per TR-53:

>1.0E06 <1.0E09

Resistance to Ground per TR-53:

>1.0E06 <1.0E09

RTG inner layer: S7.1

<1.0E05

Static Generation,  97.2

<100 volts



3 Layer Static Dissipative ESD Floor Mat
Product # 187-AS

ROLL PRICING: GRAY OR BLUE

2' x 50'

$970.74

Free shipping IconDelivered Pricing (continental USA only)*

Click here to purchase, use the drop down to select your size ESD tile - Buy Online

30" x 50'

$1,451.40

3' x 50'

$1,743.55

4' x 50'

$1,941.48



BLUE OR GRAY ESD FLOOR MAT KITS

2' x 2'

$65.00

Call for Quantity Discounts!

Click here to purchase, use the drop down to select your size

 ESD tile - Buy Online

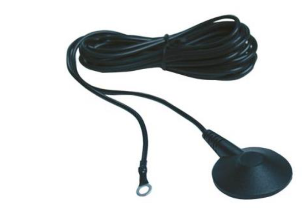

New! Floor Mat Ground Cord Now Included Free of Charge with Each Custom Cut Mat made from this material!







Note: 4' widths are no longer available in custom cuts.



2' x 3'

$95.00

2' x 4'

$125.00

2' x 5'

$155.00

2' x 6'

$185.00

2' x 7'

$215.00

2' x 8'

$245.00

30" x 2'

$80.00

30" x 3'

$117.50

30" x 4'

$155.00

30" x 5'

$192.50

30" x 6'

$228.00

30" x 7'

$267.50

30" x 8'

$305.00

3' x 3'

$140.00

3' x 4'

$185.00

3' x 5'

$230.00

3' x 6

$275.00

3' x 7'

$320.00

3' x 8'

$365.00
